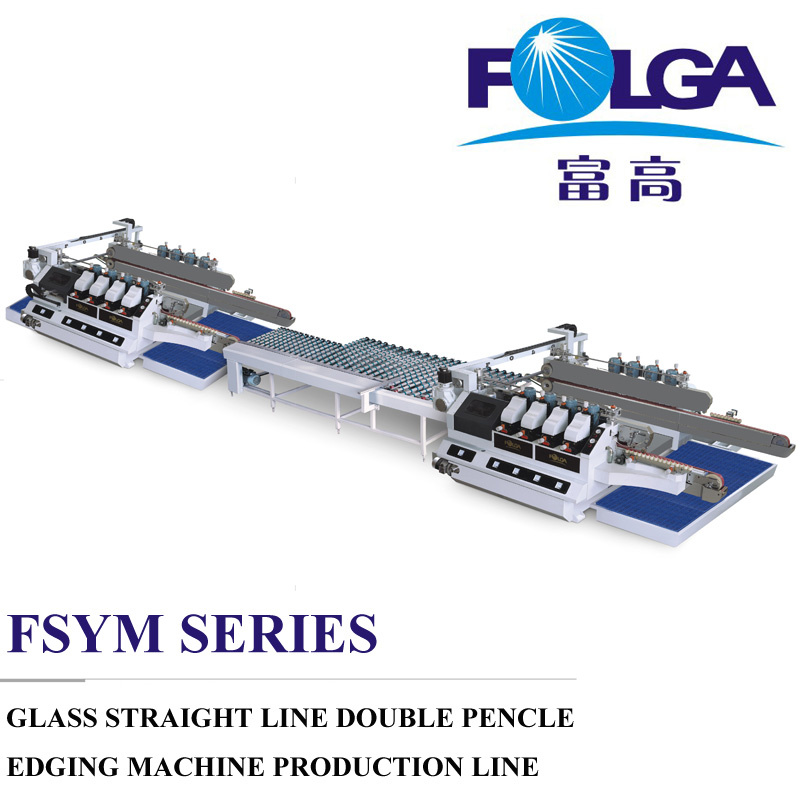

Glass Straight Line Double Edging Machine Production Line (FSM2016BL+FZT1620+FSM2020BL)
Product Specifications
| Prod Model: |
FSM2016BL+FZT1620+FSM2020BL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: |
3~25mm |
| Min.Process Size: |
380X380mm |
| Max.Process Size: |
1600X2000mm |
| Speed: |
1~6.5m/Min |
| Max.Hemline Grinding: |
5mm (Single Side ) |
| Max Arris Grinding: |
3mm |
| Low-E Membrane Removal Width: |
15mm |
| Low-E Membrane Removal Precision: |
0.3mm |
| Grinding Wheel Num.: |
20 (Each Side ) |
| Type: |
Glass Edging Machine |
| Certification: |
ISO |
| Control System: |
PLC |
Product Description
This production line is made up by one FSM2016B double edging machine, one FSM2025B double edging machine and one FZT1620 straight line type transfer table. I. Main technical data 1,Glass thickness:3~25 mm 2,Min. processed size: 380X380 mm 3,Max. processed size: 1600X2000mm 4,Max. hemline grinding:5mm(single line) 5,Max. arris grinding:3mm 6,membrane removal width: 15mm 7,membrane removal precision: ±0.3mm 8,speed:1~6.5 m/min,request achieve the best polishing effect 1,2,3 1,when the grinding thickness is 4mm-8mm, speed: 3m/min 2,when the grinding thickness is 10mm-12m, speed: 2.3m/min 3,when the grinding thickness is 15mm-19mm, speed: 1.2m/min 9,slide grinding head section speed:700 mm/min 10,working height:900mm 11,overall size: 17100X4200mm 12,Voltage/frequency:380V/50HZ 13,compress air:≥0.6Mpa 14,Air blowing rate:1320 m3/Min 15,water pump output volume:400L/hX2 16,Total power:108.3Kw II. Motors and wheels placement
Grinding head
Parameter
Name |
Grinding head 1 |
Grinding head 2 |
Grinding head3 |
Grinding head 4 |
Grinding head 5 |
Grinding head 6 |
Grinding head 7 |
Grinding head 8 |
Grinding head 9 |
Grinding head 10 |
Grinding head 11 |
|
Motor |
Power KW |
3 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
1.5 |
2.2 |
|
Speed |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
1400 |
2800 |
|
Grinding wheel |
Spec mm |
150
100 mesh |
150
140 mesh |
150 240 mesh |
130 240 mesh |
130
240 mesh |
130
40 mesh |
130
40 mesh |
150
40 mesh |
150
60 mesh |
150 CE3 |
175 |
|
Name |
Diamond wheel |
Diamond wheel |
Resin wheel |
Resin wheel |
Resin wheel |
Polishing wheel |
Polishing wheel |
Polishing wheel |
Polishing wheel |
Polishing wheel |
membrane removal wheel |
