Real Time anti GSM signal Jamming function mini GPS tracker MT01
Product Overview

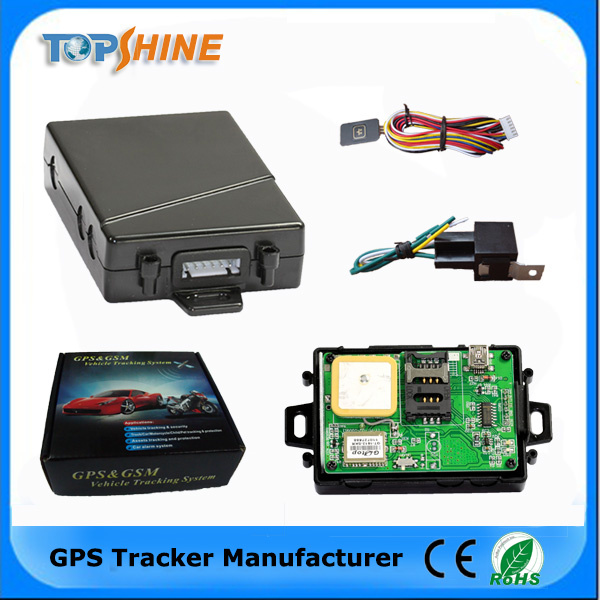

MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles.
Applications
* Vehicle Real Time Tracking
* Motorcycle/Car security / Anti-Hijack
* Fleet management
Product Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; View mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* I/O: 2 Inputs, 2 Outputs
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Wiretapping/remote listening (optional)
Specification:
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 90g |
| Charging voltage | +9V~+24V |
| SIM Card type | 3V |
| Power consumption | Active mode(peak)<1.0 A
Active mode(avg.)<300 Ma
Idle mode <50 mA |
| Operating temperature | -20~+75 degree |
| Humidity | Up to 75% non-condensing |
| External SIM card | Connected via SIM card connector |
| External Antenna | Connected via 50 Ω coax connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS chip | Latest GPS SIRF-Star III chipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08 |
| I/O | 2 Digital Inputs (1positive triggering and 1negative triggering)
2 Outputs |
Welcome to test our free tracking software:
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123
Tracking platform site: www.tstrack.net
Username: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
