Product Specifications
| Prod Model: |
ZLT-GTR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
to Determine Fire Resistance by Fire Hazard Test |
| Certification: |
ISO17025 Calibration Provided |
| Warranty: |
One Year |
| Material: |
Stainless Steel |
| MOQ: |
1 PC |
| OEM/ODM: |
Acceptable |
| Delivery: |
in 25 Days |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Flammability Tester |
| Control: |
Electricity |
Product Description

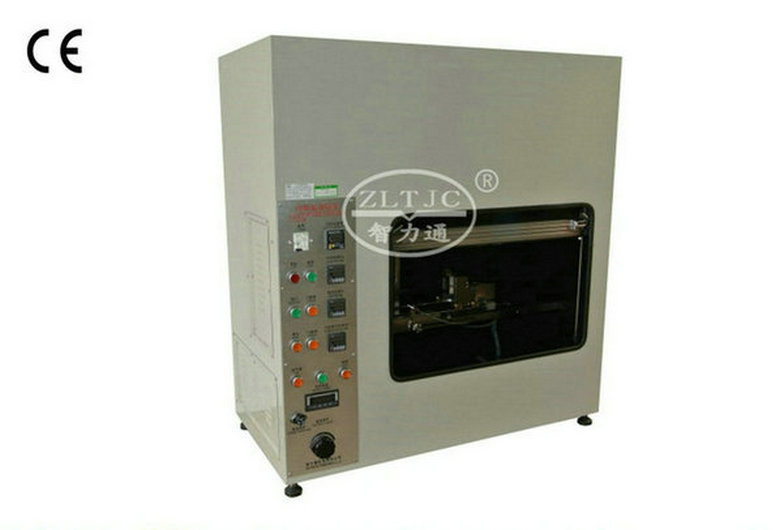

Glow Wire Tester:
Product details: Model ZLT-GTR:
To determine the fire resistance by the fire hazard test, accordance with IEC60695-2-10, IEC60335, IEC60598 and other standards.
The ignition source is imitated by an electrically heated wire loop against which the sample is pressed with a constant force. A miniature jacket thermocouple serves as a sensor for the loop temperature.
The sample has to be fastened to a carriage on which, by means of a tensioning cord, a weight with a force of 1 N is effective in the direction of the wire loop. Scales enable the reading of the flame height and the depth of penetration. Approx 200 mm below the wire loop a board of pine wood, covered with a layer of tissue paper, is mounted. This device enables to judge the danger of a fire spreading through burning drops or glowing parts falling from the sample. The calibration is done with silver foil, when the foil melts, the measuring unit must indicate a temperature of 960 ° C.
Standard outfit:
1 wire loop of nickel-chromium, Φ 4 mm, accordance with IEC60695-2-10 figure 1(2013), with clamping mechanism, with Φ 0, 6 mm for the thermocouple,
1 carriage with fixture for the specimen, with a rate of approach and withdrawal of 10 mm/s to 25mm/s,
1 fine rope pull mechanism with weights for loads of 0.95N ± 0, 2N,
1 gauge of 7 mm for the depth of penetration, with maximum pointer and stop,
1 scale to measure the flame height,
1 high current isolating transformer to heat the wire loop, with series connected variable ratio transformer, to set the temperature up to 960± 15 ° C,
1 type K thermocouple Chromel-alumel, Φ 1, 0 mm, length approx. 500 mm, to indicate the temperature of the glow-wire loop, with digital display measuring range 0~1050 ° C, built-in operable,
1 chamber with a volume of at least 0, 5 mm3, black interior,
1 wooden board, 10 mm thick,
10 sheets of wrapping tissue, of grammage between 12g/~30g/.
Power supply: 220V50Hz other voltages request.
