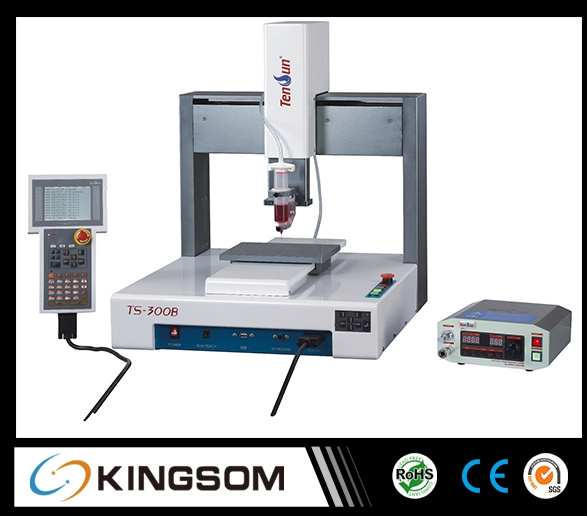

Desktop Automatic glue Dispenser Equipment
1. Simple easy high-speed precision operation
2. No noise, English operation interface
Description:
1. Substitute a certain manual operation, and realize mechanical production
2. Dispensing program by U documents upload/download, to faciliate information managemet and preseruation
3. Machine needles on the stage with a control button without external guidance than similar products more convenient for debugging
4. Ultra quiet machine
|
Models |
TS-300B |
|
Product Number |
3.001.300B |
|
Working Range X/Y/Z(mm) |
300/300/100 |
|
Load Y-AXIS / Z-AXIS |
10kg/5kg |
|
Moving rate (mm/sec) |
0.1~800 / 350 |
|
Repetitive Positioning Accuracy |
±0.01mm/200 |
|
Program Capacity |
At least 100 of each group,4000 points(support U documents COPY) |
|
Program Display |
Teach Pendant LCD |
|
Motor System |
Japanese micro-step precision motor |
|
Control Method |
point-to-point/concatenation Line |
|
Driving Method |
Timing belt+ precision beeline Guides |
|
Interpolation Function |
3 axis (any route in the 3D space) |
|
Programming Method |
Teach pendant |
|
I/0 Signals port |
8 Inputs / 8 Outputs |
|
External Control Interface |
RS232 |
|
Power Supply |
AC110V/220V 350W(internal switching) |
|
Working Temperature |
5-40°C |
|
Working Relative Humidity |
20-90% |
|
Dimensions(W * D * Hmm) |
460 * 490 * 595 |
|
Robot weight(kg) |
60 |
