Product Specifications
| Prod Model: |
GLW TYPE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Capacity(T/H): |
225 330 590 |
| Weight Kg: |
1420 1980 2880 |
| Crank Speed R/Min: |
57 62 62 |
| Usage: |
Building Materials |
| Movement Mode: |
Rotary |
| Appearance: |
Open-Type |
| Type: |
Reciprocating Feeder |
| Overall Dimension: |
3520*1380*2880 |
| Motor Power(',kw): |
4-20 |
Product Description
Contact person: Joanna
Tel: +86-537-2902388 Fax: +86-537-2902388
Address: West of Zhixue Road, High-tech Zone, Jining City, Shandong Province, China
Introduction:

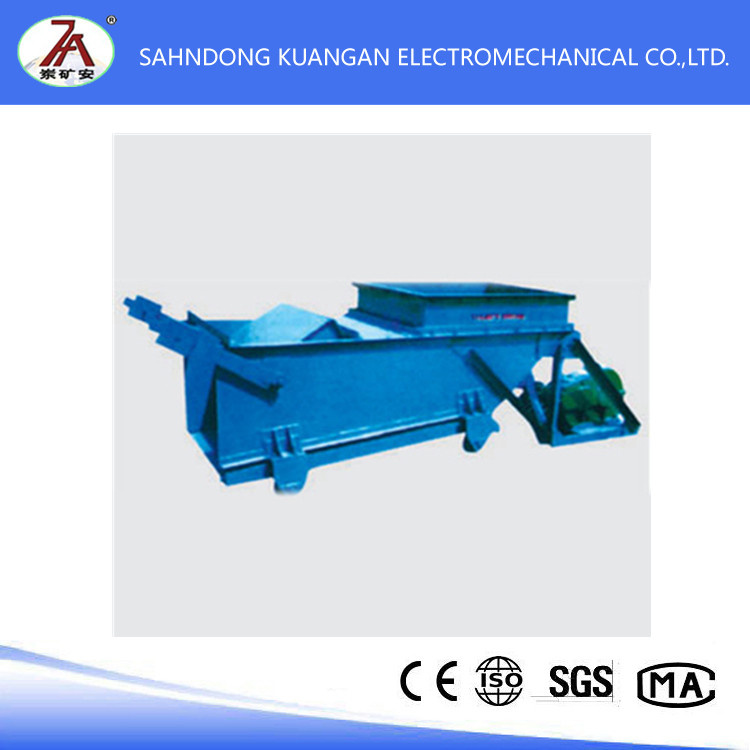

GLW series reciprocating feeder (Coal Security Certificate No.: MCN100002) used in coal mine, coal preparation plant. It can uniformly discharge coal from the coal storage bunker, then transfer to transport equipment, or direct discharge to sieving equipment or other coal preparation equipment.
Technology Parameter:
| Type | Max capacity
T/h | Power
KW | Crank Speed r/min | Weight
Kg | Mounting size |
| GLW225/4 | 225 | 4 | 57 | 1420 | Almost the same as K2 |
| GLW330/7.5 | 330 | 7.5 | 62 | 1980 | Almost the same as K3 |
| GLW590/18.5 | 590 | 18.5 | 62 | 2880 | Almost the same as K4 |
The above mentioned model is our standard model, and we also can make other models according to your working site or special demands.
Structural Features:
Reciprocating Coal feeder is mainly composed of the storehouse funnel, box body, gate, bottom plate, the roller and driving device etc, .
Working Principle:
Roller is used for supporting bottom plate. Bottom plate through the driving device drive and make regular reciprocating linear motion on the roller. The plate movement along coal flow direction is called positive line. Plate movement against coal flow direction is called retrograde. When plate along coal flow direction, roller will transfer the coal to the front of box body. When retrograde plate, the box rear ramp blocked coal, resulting in a relative sliding between the floor and coal. The front coal is falling. As a result of the reciprocating motion of the bottom plate, achieve continuous and uniform feeding.
Main components:
(1) the crank connecting rod device
(2) roller assembly
(3) speed reducer
(4) reduction mechanical and electrical machine
(5) coupling
(6) lining board
(7) shield
(8)Transmission rack
(9)Box assembly
(10)bottom plate assembly
(11)Gate
(12)funnel
