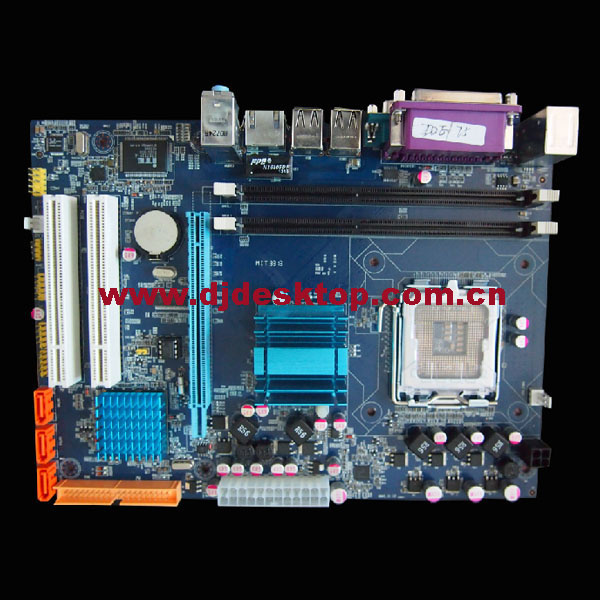

Gm45-775 Desktop Motherboard with LAN Realtek 8105e 10/100m LAN Controller

Product Specifications

Prod Model:	GM45-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Gm45-775
Northbridge:	Intel Gm45 Chipset
Southbridge:	Intel+Ich9
Audio:	Realtek Alc662 6 Channel Audio Codec
LAN:	Realtek 8105e 10/100m LAN Controller
Shipping Way:	DHL /UPS / FedEx
Shipping Time:	2-4 Working Days
Payment:	Paypal/ T/T/ Wester Union
Products Logo:	for Your Optional
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR3
CPU Socket:	LGA 775

Product Description

GM45-775 Desktop Motherboard with Lan Realtek 8105E 10/100M LAN Controller

CPU

LGA775 for Intel  Core 2 Extreme quad-core / Core 2 Extreme dual-core / Core 2 Quad / Core 2 Duo

Supports 1333/1066/800MHz FSB

Chipset

Northbridge: Intel GM45 Chipset

Southbridge: Intel+ICH9

Memory

Supports 2*DDR3 1333/1066/800 memory

Dual Channel architecture support up to 8GB by 2 DIMM slots

Graphics

Intel  Graphics Media Accelerator 4500MHD

1* VGA port

Audio

Realtek ALC662 6 Channel Audio Codec

LAN

Realtek 8105E 10/100M LAN Controller

Expansion Slot

1 *PCI Express X16 slot

2 *PCI slots

I/O Connectors

1 *IDE connector(option)

3 *SATA 3Gb/s connector

1* front panel connector

1* front audio connector

4* USB 2.0/1.1 connector

4 *USB 2.0/1.1 port

1* COM port

1* PS/2 port

1* VGA port

1 *RJ-45 port

1 *LPT port

1 *audio jacks

Accessories

CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE.

SIZE

243mm x 180mm

PACKING

20PCS IN ONE CARTON
