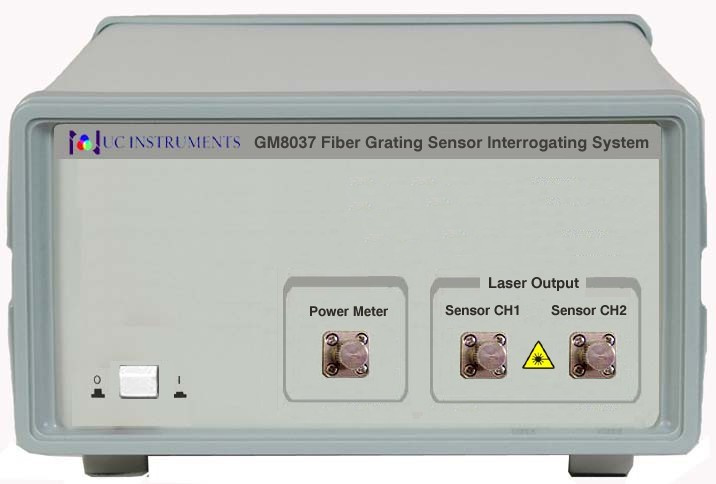

UC INSTRUMENTS' GM8037 high resolution fiber grating sensor interrogating system is a PC-based, compact size, high power, high accuracy, large dynamic range FBG sensors interrogating system and high accuracy optical spectrum analyzing system. The system includes an external device, PC-based application software and optional high performance laptop. With a build-in tunable laser source and two channel photo detectors (no additional light source is required), the system can performance a high accuracy FBG sensors interrogating and optical spectrum analyzer. It can be used for a wide variety of fiber optic sensors. The system provides users with a complete understanding of how the spectral shape of the fiber Bragg grating sensors react to varying physical conditions- rather than only reporting shifts in central wavelengths. This instrument is used both as the first step in the development of high-volume custom sensing systems and in long term field measurements. Two sensor channels allow simultaneous interrogation of multiple sensors on two fibers or both channel analysis. Either channel can be used to interrogate gratings in transmission or reflection and the system can be adapted to many types of sensors. All data can be transferred to an external PC via RS232 or USB communication ports.
It is a low-cost, high performance fiber Bragg grating (FBG) interrogation systems for various engineering and civil applications. It features PC-based, high accuracy, large dynamic range FBG sensors measurement ability and accuracy optical spectrum analyzing ability.
Features
Spectrum measurement over 40 nm with 1 pm Scan-to-scan repeatability
Two detectors enabling the measurement of sensors in transmission and reflection
Built-in single board computer, display, and instrument control panel
Display tension, pressure, temperature and other parameters in text and history
Curves per application apply to.
Data is easily transferred to PC via RS232 or USB interface
Light source, power sensor and data analyze were built into a single compact system.
High accuracy, high optical power, long distance, multi-channel testing capability.
Applications
Useful in the design and selection of fiber Bragg grating based sensors for strain,
Temperature, pressure, etc.
High accuracy, resolution and full profile data provide comprehensive feedback
On fiber Bragg grating and big dynamic range power sensor capabilities
Built-in data aquire and analysis software functions provide high resolution, high
Accuracy fiber Bragg grating center wavelength measurements
Full-spectrum measurements aid in understanding how sensors' characteristics
Change under various physical conditions
Useful for analysis of a wide variety of passive optical sensors, FBGs sensor
And other passive fiber optical components testing.
|
Model # |
GM8037 |
|
Build-in Laser Wavelength range |
1525.00 to 1566.00 nm |
|
Build-in Laser Output Power |
>= 20 mW |
|
Wavelength resolution |
1.0 pm |
|
Optical Channel Number |
2 CH (up to 64 channels optional) *** |
|
Maximum FBG sensor Per Channel |
Full Spectrum 1525 ~ 1566 nm |
|
Build-in Laser Wavelength repeatability |
+/- 3 pm, typ. +/- 1 pm |
|
Photo Sensor Dynamic Range |
> 70 dB |
|
Sweep speed |
Up to 10 Hz |
|
Connector |
FC/APC |
|
Typical grating configuration |
Reflectivity: 90%, BW: 0.25nm |
|
Communication Interface |
RS232 and USB |
|
Power |
AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. |
Environmental
Storage temperature
Operating temperature
Humidity |
− 40 to +80 degree
0 to +45 degree
<95% R.H. from 0 to +45 degree |
|
Work Environmental |
− 10 to +70 degree
0 to +45 degree
<95% R.H. from 0 to +45 degree |
|
Dimensions |
200 mm W, 105 mm H, 250 mm D |
|
Weight |
6.0 lbs |
