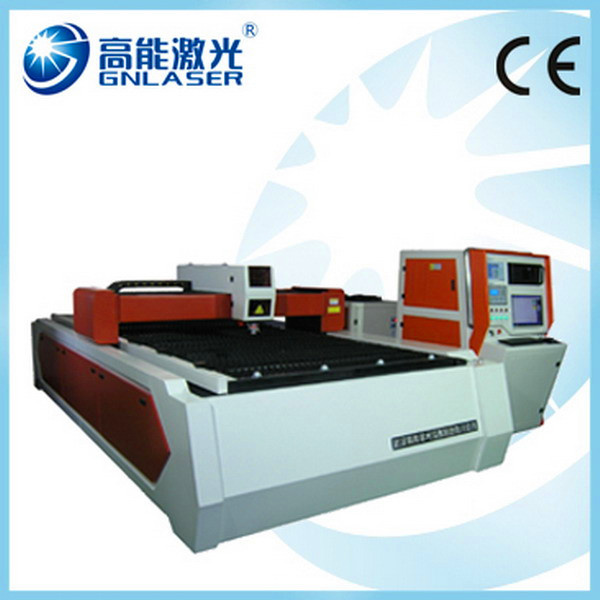

Features
1. Cutting head: Laser mech; Servo Motor: Panasonic; Driving System: Taiwan TBI ball screw
2. Most cost-effective laser cutting machine compared with Fiber laser machine and CO2 laser machine
3. High accuracy, meeting demands for cutting nearly all kinds of plate metals
4. Auto-tracking system for focus length, keeping a constant distance with material and cutting nozzle
5. Low running cost, air is qualified to be auxiliary gas for cutting all material
6. Dust-removing system is installed
7. Gantry typed designed, compact structure to minimize the floor area
8. Imported Optical components, superior laser beam and high electric-optic conversion ratio
Samples for reference:
http://www.gnlaser.com/?fpage/l2/c000347|000421
Video for reference:
CY3015-850W with protective cover 3mm stainless steel cutting. WMV: http://goo.gl/poaxl
CY3015-850W 2mm. 3mm carbon steel cutting. WMV: http://goo.gl/h0aKQ
CY3015-850W 5mm. 8mm carbon steel cutting. WMV: http://goo.gl/MZtRz
CY3015-850W10mm carbon steel cutting. WMV: http://goo.gl/NQSE7
Application
It is widely applied in fabrication industries of advertising trademark, metal structure, cabinets, metal processing, electrical cubicle switchboard, textile machinery, cereal processing machinery, kitchenware, lamps and lanterns, automobile, metal handicraft article, saw blade, electrical component, medical apparatus and instruments, aero-space, ironware, cutting and measuring tool, etc.
Application materials
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, galvanized sheet, pickle sheet, copper, silver, gold, monocrystal line silicon, poly silicon, etc
Model Type |
GN-CY2513-8500W |
Laser Working Medium |
Nd+3: YAG |
Laser Wavelength |
1064 nm |
Maximum Output Power |
850W |
Pulse Width |
0.1~20 ms |
Pulse Frequency |
0~500 Hz |
Laser power stability |
≤ ± 3 % |
Maximum cutting speed |
4500mm/min(1mm steel plate) |
Maximum cutting thickness |
≤ 12 mm(depend on material) |
Cutting area |
2500× 1300mm |
Working table axial location accuracy |
≤ ± 0.08 mm/m |
Working table repeating location accuracy |
≤ ± 0.04 mm/m |
Power supply |
380V/50Hz/100A |
Cutting gas |
Oxygen, Nitrogen or air |
Gas pressure |
> 5kg |
Wuhan GN Laser Equipment Manufacturing Co., Ltd. In the research development, production and marking of profession laser equipment. It has an integrative team of many hi-tech elites and experts in mechanism, electronic, industrial automatization and computer software filed. We keep forging ahead actively. We are pioneer and innovative-minded. We provide comprehensive laser application solution and the laser equipment for the domestic and foreign customers.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser cutting machine, YAG laser cutting machine, CO2 laser cutting and engraving machine, metal laser marking machine and so on. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. Gnlaser products are best-selling in China and other more than 68 foreign countries.
Sustaining the management concept, market-oriented, customer-centric, take quality as the core, take service as the guarantee, we adhere to the tenet "talent-oriented, science and technology lead, honesty and trustworthiness, innovation". In the high-speed development of laser application technology, as a sophisticated laser equipment manufacturer in the increasingly fierce industry competition, wuhan gnlaser equipment manufacturing Co., Ltd. is able to provide new and old customers with more advanced and cost-effective laser equipment.
Customer success is our success.
