Product Specifications
| Prod Model: |
GKA-GNSS-014 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample Time: |
1-3days |
| Lead Time: |
3-5days |
| Item: |
Gnss Antenna |
| Usage: |
Car Antenna |
| Directionality: |
Omnidirectional Antenna |
| Operating Wavelength: |
Microwave |
| Material: |
Al |
| VSWR: |
<=1.5 |
Product Description

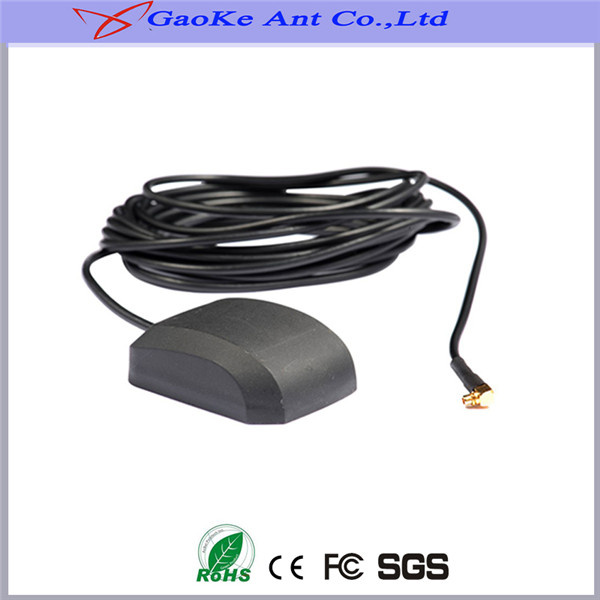

GNSS antenna
Product specification:
Electrical Specification
Range of Receiving Frequency: Glonass: 1600+-5
V. S. W. R( in Center frequency): <=1.5
Axial Ratio( with 70mm Square GND plan): <=3.0
LNA Gain(with cable) (dB): 28+-2
Noise Figure: <=2.0
Polarization: Right-Handed Circular
Impedance: 50
Supply Voltage: 3~5
Current Consumption: 12+-1@3V DC
Outline dimension(mm): 55x50x16 48x37x15 37x34x13 36x32x14 for option
Connector type: SMA/BNC/MCX/MMCX/SMB/FRKRA/GT5/ other option
Cable: RG-174
Mouting: Magnetic
Color: Black
Weight: <110g
|
Range of Receiving Frequency(Mhz) |
GPS: 1575.42± 3 GNSS:1600± 5 |
|
V. S. W. R |
≤ 1.5 |
|
Axial Ratio |
≤ 3.0 |
|
LNA Gain |
28 |
|
Noise Figure |
≤ 2.0 |
|
Polarization |
RHCP |
|
Impedance |
50 |
|
Supply Voltage |
3-5 |
|
Current Consumption |
12@3VDC |
|
SIze |
48X37X15MM/37X34X13MM |
|
Connector |
SMA/other |
|
Cable |
RG174 |
|
Mounting |
Magnetic
|
GaoKe Ant Co., Ltd. Established in 1993 devotes itself as a supplier in wireless telecommunication solution. We are not only equipped with a group of network analyzer, spectrum tester, noise detector and other advanced apparatus, but also in possession of antenna experts and professional testing site. Being concentrated on developing and manufacturing GPS, 3G, GSM, DVB-T and WiFi antenna, all kinds of cell station amplifier, repeater, and network terminal antennas have been widely applied to cell phone, mobile cell station, vehicle television, wireless module and other wireless terminators. For now, our company has designed and manufactured antenna for hundreds of domestic and oversea companies.
Being provided with rich experience in producing large-scale array antenna with well-known scientific research institutes cooperatively, our company always chooses excellent materials and control strictly during production process. Every antenna will be inspected by network analyzer and other related equipments, so each standard has met the highest technical requirements. We carry out ISO9001, ISO14001 and CE certification system and conform to RoHS standard. Professional R&D team of our company continuously brings forth the new from the old and has researched & developed new products that integrates with global market. Both the quality and price of our products has great competitive power. We also delivery goods in time and provide perfect after-sale service.
