Product Specifications
| Prod Model: |
Garavel PP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Automotive |
| Type: |
Gnss Post-Processing Software |
Product Description
Introduction
Caravel PP is a GNSS high-precision positioning post-processing software, which provides various modes of processing including static positioning and dynamic differential positioning. Caravel PP adopts the open interface design, and is seamlessly compatible with GPS, GLONASS, Compass (BD2) and Galileo system, and can instantly provide the centimeter level precision positioning information and cm/sec level precision velocity information of the carrier. With the global advanced proprietary single-epoch ambiguity resolution algorithm, as well as several sophisticated core technologies, Caravel PP successfully avoids the common initialization problem and has been proven to be preeminent and robust in various application environments.
Main Functionalities
· Single/Dual frequency single-epoch ambiguity resolution. Caravel PP combines several current most advanced single-epoch ambiguity resolution methods. This enables the system to resolve the single/dual frequency ambiguity with high reliability in just several seconds and avoid the common initialization problems, different from the conventional OTF methods. For the dual frequency data, the success ratio is even higher. The single-epoch ambiguity resolution can process the observations of short time segments effectively which is significant for practical engineering applications especially for the applications in tough conditions.
· High-precision differential positioning and velocity measurement
· Precise single point positioning and velocity measurement
· Mobile-to-Mobile differential positioning. Caravel PP can figure out the baseline information when both the base station and the rover are moving.
· User assisted processing. For the advanced users and complicated application, Caravel PP offers users intervening functionality. Users can eliminate the poor observations by hand to improve the accuracy of positioning.
· Multi-sample-rate processing. The system can process data with different sampling rates from base stations and rovers. The raw data from the base station will be automatically interpolated or extracted to implement the differential processing. In practice, the data could be saved with lower sampling rate in the base station due to storage limitation of the base station receiver.

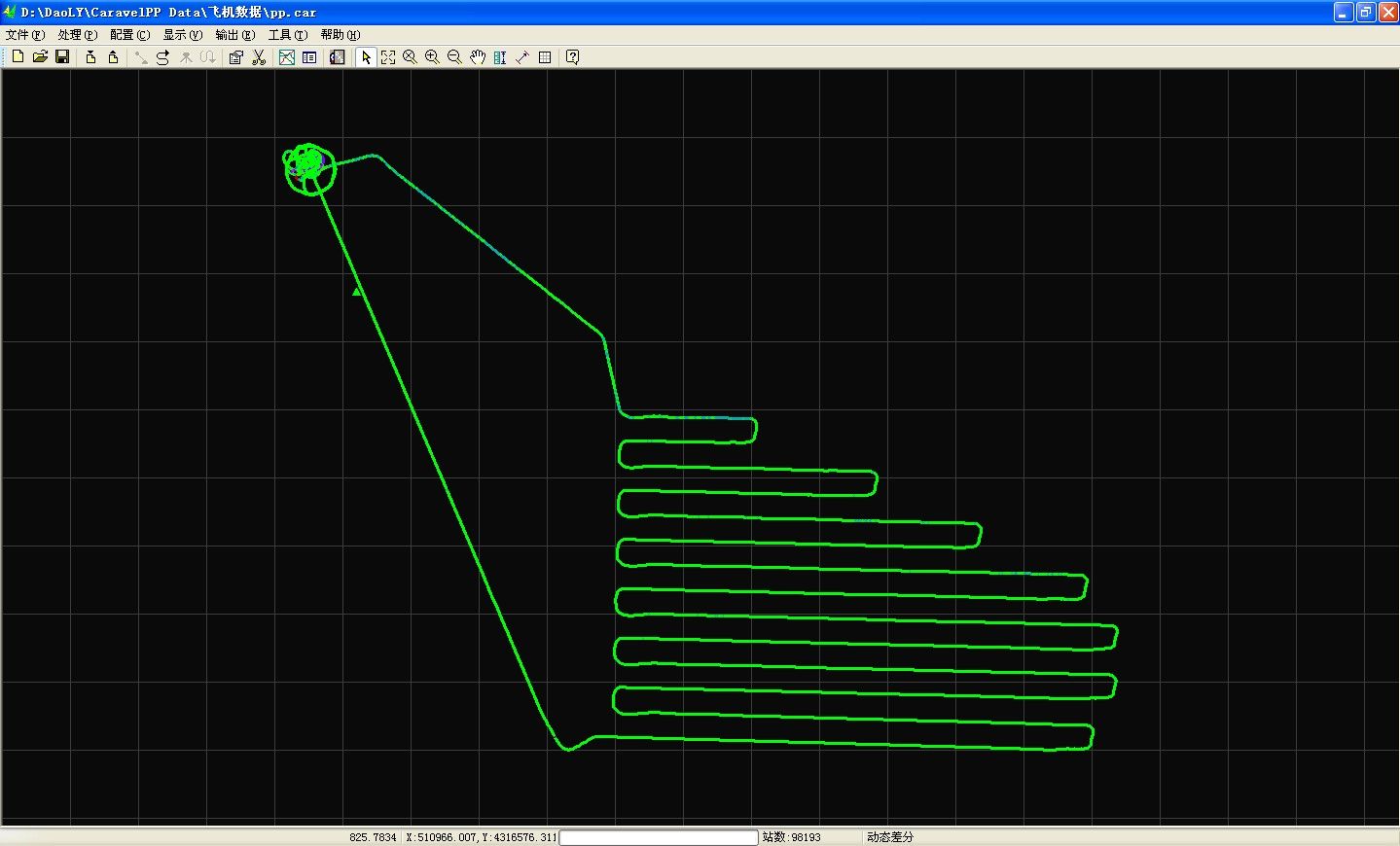

· Graphic view and analysis. Including position, velocity, positioning error, residual error, etc.
· Conversion. Including file conversion, coordinates conversion, angle conversion and time conversion.
Applications
· Surveying and mapping: The post-processing of observation data
· Transportation: Vehicle management, vehicle detection, container operating
· River course and Ocean: Buoy positioning, channel measurement, vessel positioning, search and rescue
· Railway: The velocity measurement of train
· Oil: Pipeline positioning, target positioning
· Aviation: Photogrammetry and remote sensing, plane formation
|
Dynamic Differential Positioning |
|
Observation Type |
Horizontal |
Vertical |
|
Single Frequency |
±(30 mm +1×10 -6 D) |
±(50 mm +1×10 -6 D) |
|
Dual Frequency |
±(10 mm +1×10 -6 D) |
±(20 mm +1×10 -6 D) |
Precise Point Positioning
|
|
Observation Type |
Observation Time |
Accuracy of Horizontal (1σ) |
Accuracy of Vertical (1σ) |
|
Dynamic |
> 5min |
10cm |
15cm |
|
Static |
> 2h |
5cm |
7cm |
|
> 12h |
1cm |
3cm |
|
Static Differential Positioning |
|
Observation Type |
Horizontal |
Vertical |
|
Single Frequency |
±(5 mm +1×10 -6 D) |
±(10 mm +1×10 -6 D) |
|
Dual Frequency |
±(2.5 mm +1×10 -6 D) |
±(5 mm +1×10 -6 D) |
