| Supplier: | Jinan Mutual Benefits Commercial & Trading Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

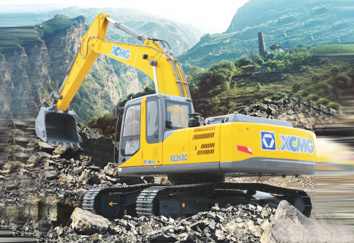

| Prod Model: | XCMG XE265C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Unit: | Xe265c |
| Operating Weight Kg: | 25500 |
| Standard Bucket Capacity M³: | 1.05~1.25 |
| Engine Model: | Isuzu Cc-6bg1trp |
| Engine No. Of Cylinders: | 6 |
| Engine Rated Power/Speed Kw/Rpm: | 128.5/2100 |
| Engine Max. Torque/Speed N.M: | 637/1800 |
| Engine Displacement L: | 6.494 |
| The Main Performance Travel Speed Km/H: | 5.9/4.0 |
| The Main Performance Swing Speed R/Min: | 11.3 |
| Type: | Crawler Excavator |
| Condition: | New |
| Certification: | ISO9001: 2000 |
| XE265C | |||
| Model | Unit | XE265C | |
| Operating weight | kg | 25500 | |
| Standard bucket capacity | m³ | 1.05~1.25 | |
| Engine | Engine Model | / | ISUZU CC-6BG1TRP |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 128.5/2100 | |
| Max. torque/speed | N.m | 637/1800 | |
| Displacement | L | 6.494 | |
| The main performance | Travel speed | km/h | 5.9/4.0 |
| Swing speed | r/min | 11.3 | |
| Max. gradeability | / | ≤35 | |
| Ground pressure | kPa | 50.1 | |
| Max.Bucket digging force | kN | 161 | |
| Max.arm crowd force | kN | 125 | |
| Max.traction force | kN | 194 | |
| Hydraulic system | Main pump | / | 2 Plunger pump |
| Rate flow of main pump | L/min | 2×256 | |
| Max pressure of prime relief valve | MPa | 34.3/37 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 28 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 240 | |
| Engine lubrication | L | 25 | |
| Overall dimensions | A Overall length | mm | 10160 |
| B Overall width | mm | 3190 | |
| C Overall height | mm | 3100 | |
| D Overall width of upperstructure | mm | 2830 | |
| E Track length | mm | 4640 | |
| F Overall width of undercarriage | mm | 3190 | |
| G Crawer width | mm | 600 | |
| H Track length on ground | mm | 3842 | |
| I Crawer gauge | mm | 2590 | |
| J Clearance under counter weight | mm | 1100 | |
| K Ground clearance | mm | 485 | |
| L Min.tail swing radius | mm | 2985 | |
| Working range | A Max. digging height | mm | 9662 |
| B Max. dumping height | mm | 6810 | |
| C Max. digging depth | mm | 6895 | |
| D 8inch horizonal digging depth | mm | 6750 | |
| E Max. vertical wall digging depth | mm | 5480 | |
| F Max. digging reach | mm | 10240 | |
| G Min. swing radius | mm | 3850 | |
| Angle of arm deflection | Degree | ||
