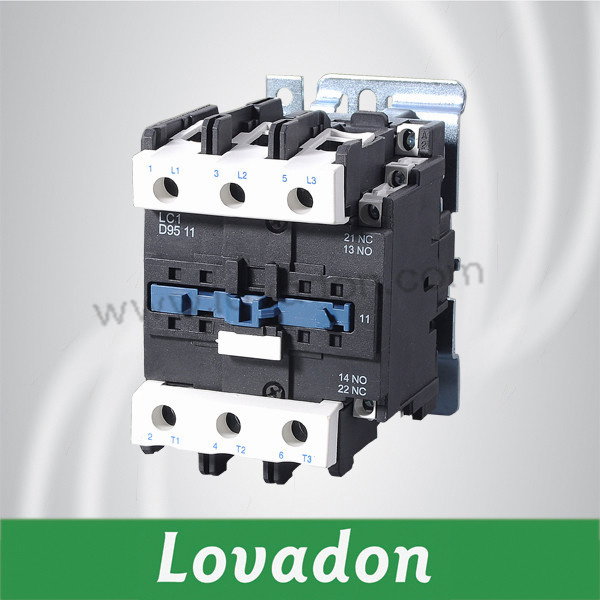

Good Quality Cjx2 Series D9511 Type AC Contactor

Product Specifications

Prod Model:	CJX2-D9511
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Lovadon
Rated Voltage:	24V 36V 110V 117V 220V 380 V 415V
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay, Communication Relay, Lathe Relay, Thermal Relay
Protective Characteristics:	Open Relay
Load:	Weak Power Relay
Action Principle:	Electronic Type

Product Description

Application
" CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to
"95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.

Matched auxiliary contact type LA1-DN02(2NC), LA1-DN11(1NO+NC), LA1-DN20(2NO), LA1-DN22(2NO+2NC), LA1-DN40(4NO, LA1-DN04(4NC), LA1-DN13(1NO+3NC), LA1-DN31(3NO+1NC)

Matched time delay auxiliary contact type Time delay after power on: LA2-DT0(0.1-3S), LA2-DT2(0.1-30S), LA2-DT4(10-180S), Time delay after power off: LA3-DR0(0.1-3S), LA3-DR2(0.1-30S), LA3-DR4(10-180S).

	1.Specifications
Type		CJX2-09 (LC1-D09)	CJX2-12 (LC1-D12)	CJX2-18 (LC1-D18)	CJX2-25 (LC1-D25)	CJX2-32 (LC1-D32)	CJX2-40 (LC1-D40)	CJX2-50 (LC1-D50)	CJX2-65 (LC1-D65)	CJX2-80 (LC1-D80)	CJX2-95 (LC1-D95)
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
AC3 capacity of three-phase squirrel-cage motor AC3(kW)	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	45
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC4X104	20	20-15	41475	41470	41470	41554	7	41461	41460	41460
	AC3X106	2	2	2	2	2	2	2	1.6	1.6	1.6
Mechanical lifeX106		20	20	20	20	20	20	50	20	10	10
Number of the contact		3P+NO
		3P+NC
