Product Specifications
| Prod Model: |
SH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Good |
| Name: |
Good Quality Time Delay for Refrigerator (Sh) |
| Theory: |
Thermal Relay |
| Usage: |
Lathe Relay |
Product Description

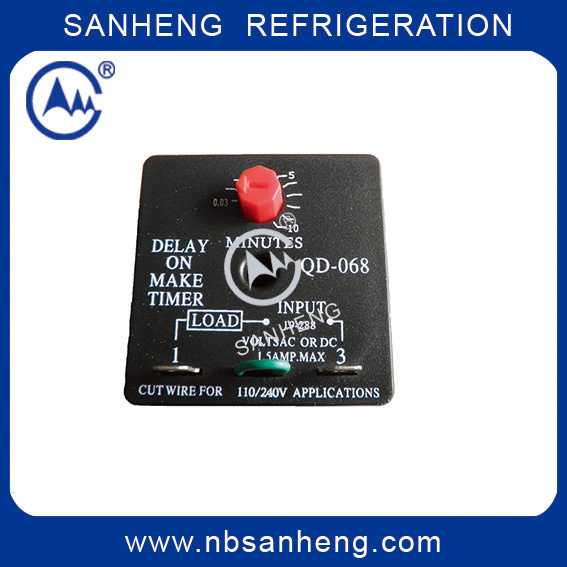

Good Quality Delay On Make Timer for Refrigerator
Model: SH
Brand: SANHENG
Specifications
1)Protection from short cycling of compressor
2)Ideal for compressor staging
3)By-pass a control or device during staging
1)TIME DELAY-OTD SERIES
For protection of HVAC/R equipment,the TD Series of Time Delays provide the solution.Choose the Delay on Make,Delay on Break or By-pass Timer that solves the problem.
2)BENEFITS
.Fixed or adjustable Delay Ranges
.Broad input voltage range(Pilot Circuit)
.1.0Amp rating
.Varying models work with or without anticipator circuit.
.Terminal or wire connections available
.Compact size
3)BTD68 DELAY ON MAKE TIMER
APPLICATION
"ON"Delay On Make
.Multi Purpose"Delay on Make"timing
.Protects Air-conditioning,Refrigeration and Heat pumps from damage which may be caused by short cycling of compressor.
.For compressor staging and stagger starting multiple units.
.Helps to reduce power surges in multiple compressor applications
4)SPECIFICATIONS
Delay Range(Adjustable) |
6sec.to 8 min. |
Initiate Timer |
70 milliseconds |
Input Voltage |
19 to 250 VAC/VDC,50/60Hz |
Maximum Load |
1 amp.10 amp.inrush |
Operation Temperature |
0°F to +160°F(-18°C to +71°C) |
Dimensions |
2"x2"x0.75",(5.08x5.08x1.9cm) |
Mounting |
Nonpositional:single hole mounting |
Connections |
1/4" male Terminals
|
About us
Ningbo Sanheng Refrigeration Control Co., Ltd is an refrigeration parts manufacturer from China, which specializes in manufacturing HVAC&Refrigeration parts.
Our aim is to supply the most suitable refrigeration unit parts for
Refrigeration unit manufacturers and distributors.
Ningbo Sanheng Refrigeration Control Co., Ltd. is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.
After decades of development, we have a profeeional refrigeration technology team with wealth of practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, Automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.
Sanheng Company relies on the "Sanheng"spirit, i. e. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.
