Product Specifications
| Prod Model: |
ID Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
CE |
| Breaking Capacity: |
4.5 Ka 6ka 10ka |
| Operation: |
Electrical Type / Magnetic Type |
| Installation: |
DIN Type |
| Structure: |
RCCB |
| Poles Number: |
2p, 4p |
Product Description

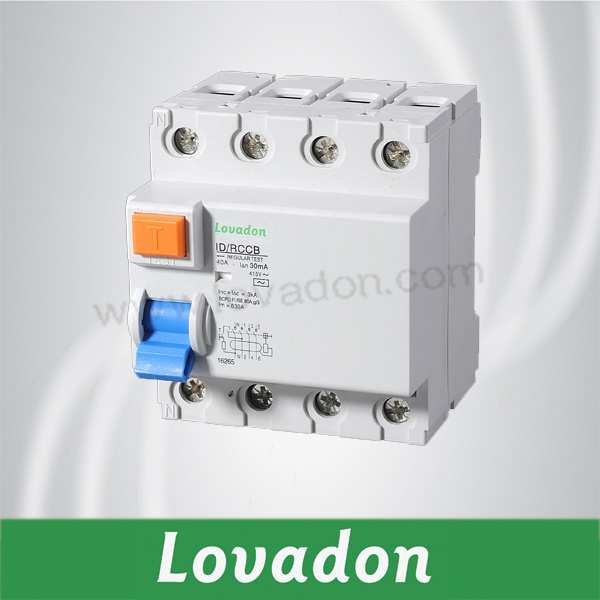

ID Series Residual Current Circuit Breaker ID Series Residual Current Circuit Breaker
| Standard | IEC61008-1 | |
| Electrical features | Type (wave form of the earth leakage sensed) | | AC,A | |
| Rated current in | A | 16,25,40,63,100 | |
| Poles | P | 2,4 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity i n | A | 0.03,0.1,0.3 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and breaking capacity I M | A | 500(In=25A/40A) 630(In=63A) | |
| Short - circuit current I C | A | 6000/10000 | |
| SCPD fuse | A | ---10000 | |
| Break time under I N | S | =< 0.1 | |
| Rated frequency | HZ | 50/60 | |
| Rated impulse withstand voltage (1.2/50) Uimp | V | 6000 | |
| Dielectric test voltage at ind. Freq. for 1 min | kV | 2.5 | |
| Pollution degree | | 2 | |
| Electrical life | t | 2. 000 | |
| Mechanical life | t | 2. 000 | |
| Fault current indicator | | Yes | |
| Protection degree | | IP20 | |
Ambient temperature
( With daily average =< 35C) | C | -5 __+40 | |
