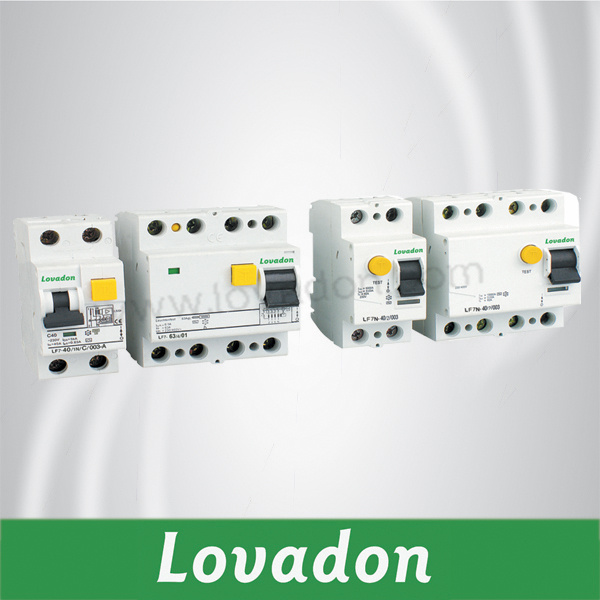

Good Quality Lf7 Series Residual Current Circuit Breaker

Name: Good Quality Lf7 Series Residual Current Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 684078022
Availability: InStock
Rating: 4.7 (31 reviews)

Supplier:	Yueqing Lovadon Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LF7 2P LF7 4P LF7N 2P LF7N 4P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Installation:	DIN Type
Structure:	RCCB
Poles Number:	2p,4p

Product Description

1.Item name: LF7 2P

2.Standard:IEC61008-1

3.Function:Leakage protection

4.Rated voltage: 230/400

5.Rated current: 16A/25A/32A/40A/63A

6.Frequency: 50/60Hz

1.Specifications
Standard		IEC61008
Type		AC,A
Rated current In	A	16,25,32,40,63
Poles	P	2,4
Rated voltage Ue	V	230,400
Rated sensitivity I n	A	0.03,0.1,0.3
Break time under I n	s	0.1
Rated frequency	Hz	50/60
Rated impulse withstand voltage (1.2/50) Uimp	V	6000
Insulation voltage Ui	V	500
Electrical life	t	6000
Mechanical life	t	20000
SCPD fuse	A	10000
Terminal size top/ bottom for cable and busbar	mm2	25
Tightening torque	N*m	2
Mounting		On DIN rail EN60715 (35mm) by means of fast clip device
Connection		From top
