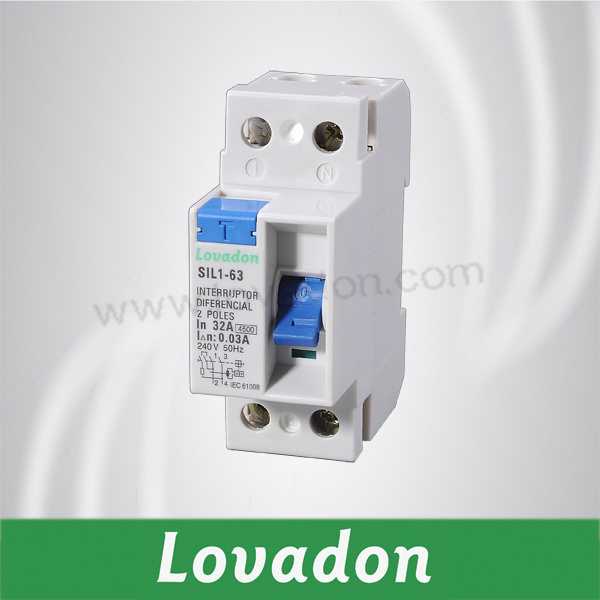

Good Quality Sil1 Series 2p Residual Current Circuit Breaker

Product Specifications

Prod Model:	SIL1-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Installation:	DIN Type
Structure:	RCCB
Poles Number:	2p,4p

Product Description

SIL1 type Residual current device(RCCB/RCDs) briefly RCDs, are designed for protection of humans and animals against the dangerous effects of electric current. When parts under votage are touched, the RCD instantly switches off the current long before any amount or duration of current flow can cause damage. Such fields of application are, e. G., rooms with bath tubs or shower, saunas, indoor and outdoors.
Rated voltage Un: 230/400V
Rated current In: 16A, 25A, 32A, 40A, 63A
Rated fault current: 30mA, 100mA, 300mA, 500mA
Rated frequency: 50Hz
Rated breaking capacity: 6KA
Energy limiting class: 3
Isolating class: B
Mounting on the rail: EN60715(EN 50022)
Standards: IEC 61008, EN 61008
Certificates: CE, CB, SEMKO, RoHS

1.Specifications
Electrical  Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3  0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
MechanicaI features	Electrical life	t	4000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )
