| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Electrical Feature | Standard | IEC61008-1 | |
| Type(wave form of the earth leakage sensed) | AC,A | ||
| Rated current In | A | 10,16,25,40,63 | |
| Poles | P | 2,4 | |
| Rated voltage Ue | V | 230/400 | |
| Rated sensitivity I n | A | 0.03,0.1,0.3 0.5 | |
| Insulation voltage Ui | V | 500 | |
| Rated residual making and | A | 500(In=25A/40A) | |
| breaking capacity I m | 630(In=63A) | ||
| Short-circuit current I c | A | 6000/10000 | |
| SCPD fuse | A | 10000 | |
| Break time under I n | s | <0.1 | |
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind Freq for 1 min | kV | 2.5 | |
| Pollution degree | 2 | ||
| Mechanical features | Electrical life | t | 6000 |
| MechanicaI Iife | t | 20000 | |
| Fault current indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature | C | -5~+40 | |
| (with daily average 35 ) | |||
| Storage temperature | From -15 C to 70 C | ||
| Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar | |
| Terminal size top/bottom for cable | mm2 | 25 | |
| AWG | 18---3 | ||
| Terminal size top/bottom for busbar | mm2 | 25 | |
| AWG | 18---3 | ||
| Tightening torque | N*m | 2.5 | |
| In-lbs. | 22 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom |

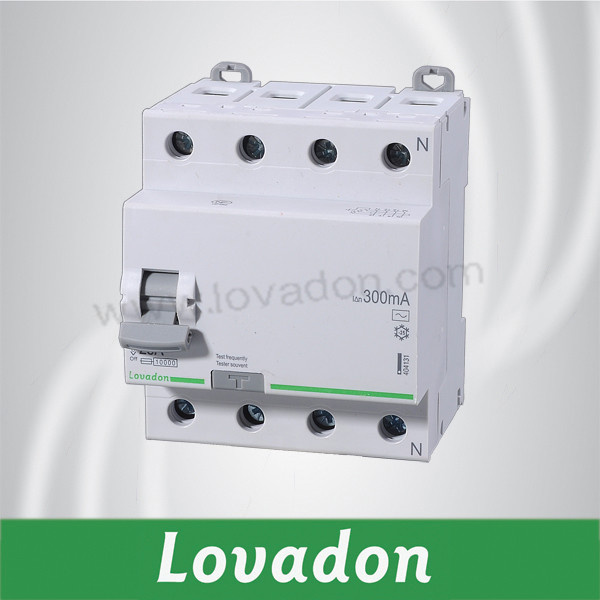

| Prod Model: | TX3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: | Normal Type Circuit Breaker |
| Arc-extinguishing Medium: | Air |
| Certification: | CE |
| Breaking Capacity: | 4.5 Ka 6ka 10ka |
| Operation: | Electrical Type / Magnetic Type |
| Installation: | DIN Type |
| Structure: | RCCB |
| Poles Number: | 2p,4p |
