Jinan Mutual Benefits Commercial & Trading Co., Ltd. >> Good Quality Wheel Loader\ Loader

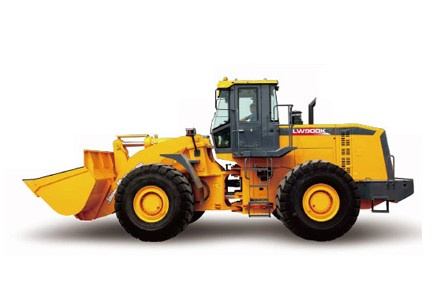

Good Quality Wheel Loader\ Loader

$Good Quality Wheel Loader\ Loader$

Supplier:	Jinan Mutual Benefits Commercial & Trading Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LW900K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After-Sales Service Provided:	Engineers
Export Market:	Global
Rated Load:	9t
Max. Traction:	245kn
Boom Lifting Time:	7s
Rated Bucket Capacity:	5m3
Operating Weight:	29500kg
Cylinder Amount:	6
Power:	250kw(335HP)
Walking Mode:	Wheeled
Condition:	New
Type:	Large Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

Good Quality Wheel Loader\ Loader:

High productivity and low fuel consumption

High performance Cummins QSM11(Tier3) engine.

Low fuel consumption.

ZF transmission with KD function.

Efficient hydraulic system.

Enlarged bucket capacity.

Long wheel base.

Comfortable work environment

Automatic electro-hydraulic transmission.

Low noise XCMG punched type cab.

Adjustable brake system.

Single lever clutch system.

Air conditioner.

Adjustable steering column.

High reliability

Originally imported Cummins engine, ZF drive axle.

Solid frame.

Maintenance-free, full hydraulic, wet and dry type parking brake.
I
Mported hydraulic and brake parts.

The wiring adopts water-proof joints.

Easy maintenance

The easily damaged parts are convenient to maintain.

Centralized pressure measuring

Centralized oil filling system (optional centralized lubrication system.

LW900K
Items	Unit	Parameters
Rated bucket capacity	m 3	5
Rated load	kg	9000
Operating weight	kg	29500
Max. traction	kN	245
Max. breakout force	kN	260
Boom lifting time	s	7
Total time of 3 devices	s	12.5
Tyre		29.5R25
Overall dimension	mm	9400×3500×3770
Engine model	Cummins QSM11-C335
Type	Water cooling, 4 stroke
Suction	Turbo charging, air intercooler
Cylinder amount	6
Cylinder bore
Piston displacement	10.8L
Speed controller	Electronic, whole process speed control
Power	250kW(335HP)
Rated revs	2100rpm
Fuel system	Direct injection
Max. torque	1647nm@1400rmp
Lubrication system	Gear pump forced lubrication
Filter	Full flow type
Air filter	(double element, dust discharge and dust indicator) dry type
Hydraulic torque converter
Type	Single stage, 2 phase, 3 elements
Transmission
Type	Planetary gear
Travel speed km/h
Drive system	4WD
Front wheel	Fixed, full floating type
Rear wheel	Central pin bearing, full floating type, 26° swing
Reduction gear	Spiral bevel gear
Differential gear	Common gear
Final drive	Planetary gear, first stage reduction
Service brake	Full hydraulic wet type disc brake (4 wheels)
Parking brake	Wet type disc brake
Emergency brake	Also used as parking brake
Type	Articulation, full hydraulic power steering
Steering angle	bidirectional 40°
Min. turning radius(by outer wheel center)	6200mm
Steering system
Hydraulic pump	Gear pump
Max. flow	168ltr/min
Pressure of safety valve	19MPa
Steering cylinder
Type	Double acting piston type
Cylinder amount	2
Cylinder bore × stroke	115mm×445mm
Loading control
Hydraulic pump	Gear pump
Rated flow	294+168I/min
Pressure of safety valve	20MPa
Operating cylinder
Type	Double acting piston
Cylinder amt. - cylinder bore × stroke:
Boom	2-180mm×880mm
Bucket	1-220mm×590mm
Control valve	Single handle
Control device
Boom	Lifting, retaining, descending, floating
Bucket	Back inclination, retaining, dumping
Cylinder operating time
Lifting	7 s
Dump	1.2 s
Descending (empty bucket)	4.3 s
Cooling system	65L
Fuel tank	420L
Engine	33L
Hydraulic system	340L
Drive axle (each)	66L
Transmission	64L

Our company supplies different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
