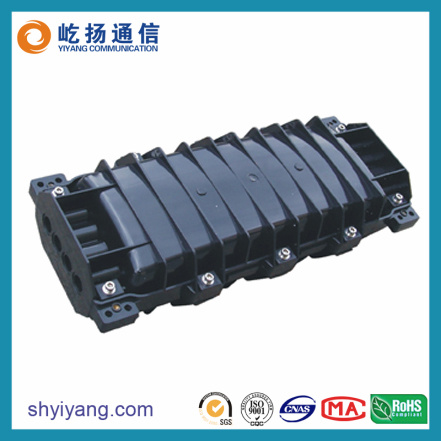

Product Name: 201/A Small Inline Fiber Optic Splice Closure
Part No.: YYGPJ-201/A
Specification: 4 inlets and 4 outlets (12-288 fibers)
Detailed Product Introduction:
Structure Feature:
High strength engineering plastic with anti-aging agent
Good quality stainless steel screw and hanging hook
Cable and strength member fixation device
Fiber routing design
Max. cable diameter: φ20
Min. cable diameter: φ10
Complete accessories
Performance Advantages:
Easy operation
Reliable sealing performance
Easy re-opening
High strength, can be direct buried or aerial
Easy and quick operation and maintenance
Application:
Used for direct transmission of outdoor cable in aerial, duct and direct buried application
Used for branching connection and protect the joint
Technical Parameter:
· Environmental Temperature: -40ºC~+60ºC
· Air Pressure: 70~106KPa
· Tensile Strength: >1000N
· Pressure: >2000N/10cm2, 1min
· Insulation Resistance: >2×104MΩ
·Voltage Resistance: under 15KV DC and 1 min, no puncture, no arc-over
| Product name | Type | Specfication | No. for Cable | Volume |
| 201 inline optic splice closure | YYGPJ-201/A | 320x140x70(mm) | 2 inlets 2 outlets | 4~12 cores |
| 202 inline optic splice closure | YYGPJ-202/A | 465x180x125(mm) | 2 inlets 2 outlets | 12~96 cores |
| YYGPJ-202/B | 580x195x144(mm) | 2 inlets 2 outlets | 12~144 cores |
| 203 inline optic splice closure | YYGPJ-203/A | 465x180x125(mm) | 3 inlets 3 outlets | 12~96 cores |
| YYGPJ-203/B | 560x250x140(mm) | 3 inlets 3 outlets | 12~144 cores |
| 204 inline optic splice closure | YYGPJ-204/A | 460x230x120(mm) | 4 inlets 4 outlets | 12~144 cores |
| YGPJ-204/B | 560x250x140(mm) | 4 inlets 4 outlets | 12~288 cores |
