Product Specifications
| Prod Model: |
GPK-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Huawei |
| Condition: |
New |
| Original: |
Shanghai |
| Warranty: |
1year |
| Usage: |
Beveling |
| Certification: |
CE |
Product Description

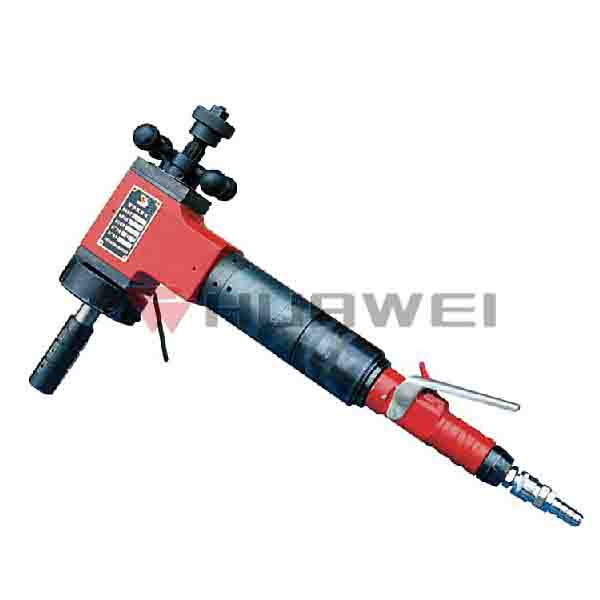

This series machines are driven by blade type pneumatic motor and run with low speed of torque obtainedfrom planetary gear set.
The blade holder is equipped with automatic feeding unit.The bevel angle of this series is within 0ºC -37ºC
| Order NO. | Model NO. | Input Air
Pressure (motor)
MPA | Air Consumption
L/MIN | Beveling Range
MM | MAX. Thickness of
Cutting Wall
MM | Milling Speed
R/MIN | MAX. Flange Rnage
MM | Weight
KG |
| HW5502 | GPK-80 | 0.6 | 900 | 28-80 | 15 | 100 |
| 13.6 |
| HW5501 | GPK-80 | 0.6 | 900 | 65-159 | 15 |
|
| 13.6 |
| HW5510 | GPK-150 | 0.6 | 900-1100 |
| 15 | 34 |
| 30.8 |
| HW5520 | GPK-351-I | 0.6 | 900-1100 | 159-351 | 15 | 14 |
| 58.2 |
| HW5521 | GPK-351-II | 0.6 | 900-1100 |
| 75 |
| 145 | 66.4 |
| HW5530 | GPK-630-I | 0.6 | 900-1200 | 351-630 | 75 | 10 |
| 119.3 |
| WH5531 | GPK-630-II | 0.6 | 900-1200 |
| 75 |
| 145 | 115.3 |
