Product Specifications
| Prod Model: |
KS168 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cover: |
Aluminium |
| Weight: |
495g |
| Work Voltage: |
DC 9V-30V |
| GSM/GPRS Module: |
SIM800W or SIM840W |
| Color: |
Black |
| Model Number: |
Ks-168 |
| Frequency: |
900/1800/1900MHz or 850/900/1800/1900MHz |
| GPS Chip: |
Sirf Iii Chip |
| Network: |
GSM/GPRS/GPS |
| Size: |
85*63*25(Mm) |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
85*63*25(Mm) |
Product Description

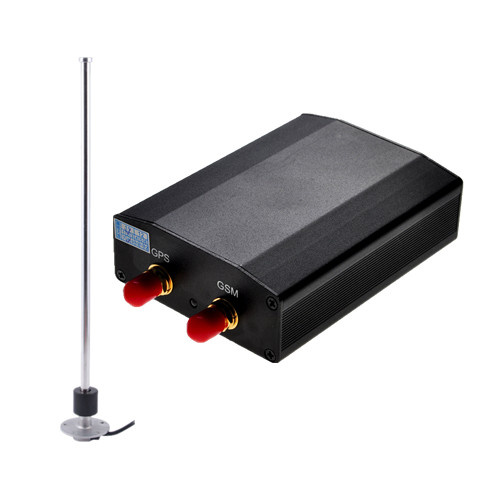

GPS/GSM/GPRS Vehicle Tracker
Item No.: KS-168
Summary:
This product(GPS tracker KS168) can locate and monitor any remote targets by SMS or Web, working
Based on existing GSM/GPRS network and GPS satellites.
Applications:
1. Car anti-theft Tracking.
2. Car commanding and Dispatching System.
3. Intelligent Mnagement of Vehicle Monitoring System.
4. Vehicle Rental/ Lgistics Cnter.
5. Special Tracking System for Outside Machine.
6. Automatic Vehicle Location.
Features:
>Real-time Position and Tracking
>Get the longitude and latitude info by sending SMS.
>Emergency alarm/ SOS/Movement alarm/ Overspeed alarm/ Border crossing alert.
>ACC detection/ remote cut off oil and circuit.
>Support Fuel Sensor/ Storage/ Temperature Sensor/ Speaker/ Relay.
>Tracking way: Web tracking, mobile phone tracking.
>Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft
Alarm warning.
>Blind report after the event: When there is no GSM signal, atuo storage the GPRS location data.
After have GSM signal, then report the GPRS data.
Payment:
1. We accept Alipay, West Union, TT.
2. For security reasons, we will only ship orders to the delivery address that you confirm with Escrow.
Shipping:
1. Items will be shipped in 3 working days after payment received.
2. We are not responsible for any accidents, delays or other issues that are responsibility of the shipping service.
3. If you wanna get the parcel with tax free upon import, pls confirm the content of invoie with us ahead.
4. Any import charges or fees are the buyer's responsibility.
Warranty:
1. Refund or replacement request is available within 7 days after parcel received. Items must be returned in original condition.
2. After 7 days, items are only can be repaired, and the buyer afford the shipping fee.
3. Shipping, handing and insurance fees are not refundable.
Feedback:
1. Your support is the motivation of our development. If you are satisfied with our products and service, pls give us positive feedback.
2. Pls contact us before leaving any negative or netural feedback, we will work with you to solve any problems.
|
Content |
Specs. |
|
Dim. |
87 * 64 * 26 (mm) |
|
Weight |
495g |
|
Network |
GSM/GPRS/GPS |
|
Band |
900/1800/1900MHz or 850/900/1800/1900MHz |
|
GPS chip |
SiRF III chip |
|
Frequency |
L1 1575.42MHz, C/A code |
|
GSM/GPRS Module |
SIM800W or SIM840W |
|
Protocol standard |
NMEA 0183 ver. 3.0/SiRF Binary |
|
GPS channel |
20 channels |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5 m |
|
Acquisition sensitivity |
-144dBm |
|
Time To First Fix |
Reacquisition 0.1s
Cold status 45s
Warm status 35s
Hot status 1s |
|
Work Voltage |
DC 9V-30V |
|
Battery |
Chargeable changeable 3.7V / 600-800mAh Li-ion battery |
|
Standby work current |
< 30mA |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
5%--95% non-condensing |
|
Low Battery Alert |
Automatic alert when voltage under 9V and device can't work |
|
Working Time |
Up to 300 mins |
|
Standby Time |
48 hours |
|
Port |
1 analog input, 2 digital output, 3 digital input |
|
Storage Capability |
minimum 10000 |
