GPS GSM Tracker Device with History Data Report for Bus Fleet Management

Product Specifications

Prod Model:	JT-GP4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	GPS GSM Tracker Device with History Data Report
Overall Dimension:	100*73*29mm
Weight:	750g (Including Standard Accessories)
Housing:	Aluminum Case
Operational Temperature:	-25-70 C
Certificate:	ISO9001/ Ts16949

Product Description

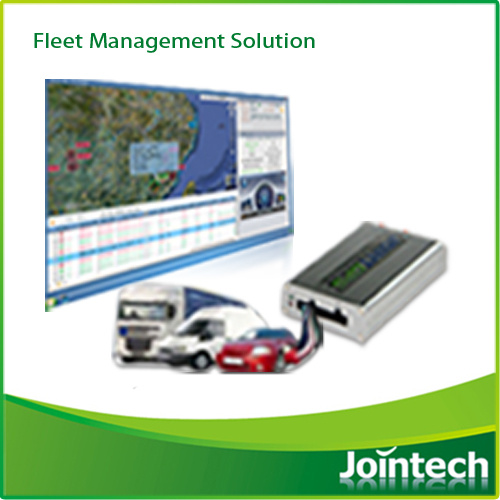

GPS GSM tracker device with history data report for bus fleet management

GP5000 is a tracking of fleet and mobile asset management system product which could meet the mainstream requirements of clients.The whole system is stable and reliable after 5 years real operation and service. The general functions are as below: 1. Real time vehicle online location tracking 2. Vehicle dynamic datas and status real time monitoring 3. Vehicle driving track replay 4. Route control & management 5.Real time fuel consumption monitoring; 6. Geo-fence

Product Specification

Mechanical & Environmental
Dimensions(L x W x H)	103X71X26mm
Weight	750g (including Standard Accessories)
Housing	Aluminum case
Operational Temperature	-25~70
Storage temperature	-40~80
5 switch outputs	<500mA
6 switch inputs	(4 high level trigger) (2 low level trigger)
1 analog input	0~5V
1 pulse input	<3.8V (trigger)
SMS LCD screen 2 voice communication	Optional
Power Consumption	60mA~100mA
Backup Power	8.4V 400mAh Ni-MH battery
Input Voltage	10~30V
GPS Receiver
Chipset	SiRF Star III
Frequency	L1,1575.42 MHz
Code	C/A Code
Protocol	NMEA 0183 V2.2
	Default: GGA,GSA,GSV,RMC
	Support: VTG,GLL,ZDA
	SiRF binary and NMEA Command
Available Baud Rate	4,800 to 57,600 bps adjustable
Channels	20
Flash	4Mbit
Sensitivity	Tracking: -159dBm
Cold Start	42seconds, average
Warm Start	38seconds, average
Hot Start	1 seconds, average
Reacquisition	0.1 seconds, average
Accuracy	Position: 10meters, 2D RMS
	5meters, 2D RMS,WAAS enabled
	Velocity: 0.1 m/s
	Time: 1us synchronized to GPS time
Maximum Altitude	< 18,000 meter
Maximum Velocity	<515 meter/second
Maximum Acceleration	<4G
Update Rate	1 Hz
DGPS	WAAS,EGNOS,MSAS
Datum	WGS-84
Function Introduction
Type	Description
Transmission Mode	TCP/UDP/SMS
Data flow control/Power Saving mode	Time interval/Distance interval
Management time of uploading	Time Reference/ Day reference/Week Reference
Alarm kinds	GPRS/SMS/Email
Basic Function	GPS/Electronic Mileage statistics
	Remotely listen-in
	Geo-fence(64)
	Hot spot(64)
	Domain name supporting
	Blind area data supplementary uploading
	History data storage (43200 pcs)
	GPS antenna open/ short detection
	Automatic self-check/recovery/protection
	Build-in backup battery
Alarm Function	Geo-fence: enter Geo-fence/ exiting Geo-fence
	Overtime parking
	GSM module restart
	Fatigue driving
	Over speed
	Panic button (SOS)
	Backup battery starting
	Illegal door-opening
	Illegal ignition
	Fuel level change
	Extended fuel level change
	Seat belt unfasten
	Harsh braking
	Vehicle sliding in neutral gear
	Hot Spot enter/exit
	Tow
	Deviation from the route
	Over speed driving on the road or area
	Over speed driving on the road or area
Support External Device	Dispatch Screen
	Fuel Sensor(Analog)
	CCD Camera
	RFID Device
	Password Keypad
	Bar-Code Scanner
	Temperature Sensor
Control Function	Cutting off the Fuel pump of vehicle
Management Function	Alarm Report
	Day Mileage Report
	Trip Report
	Parking Report
	Idling Report
	Seat Belt unfasten Report
	Harsh Braking Report
	Vehicle sliding in neutral gear Report
I/O Port	Switch signal inputs(6)
	Switch signal output(5)
	Analog signal input(1)
	Analog signal input(1)
	Analog signal input(1)

Support External Device
1.Dispatch Screen(option):Dispatch Screen(option)/Dispatch message exchange between driver and centre
2.Fuel Sensor(Analog) (option)/Fuel Sensor(Digital) (option)
3.CCD Camera (option)
4.RFID Device (option)
5.Password Keypad (option
6.Bar-Code Scanner (option)
7.Temperature Sensor (option)

Application:
GP4000 is a our classic design products, and have a stable performance in working. It is widely used in Fleet remote tracking, motoring, generator/ engine Asset  fuel consumption remote monotoring and arrangement, and also have muti-function when connected with external device, etc.
