Product Specifications
| Prod Model: |
FK80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
85(L)× 63(W)× 25(H)mm |
| Weight: |
90g |
| GSM: |
850/900/1800/1900MHz |
| GPRS: |
Class 12, TCP/IP |
| Voltage: |
6-50V DC |
| GPS Fixed Time: |
Cold Start 30sec(Open Sky) |
| Warm Start: |
29sec(Open Sky) |
| Hot Start: |
5sec (Open Sky) |
| GPS Fixed Precision: |
10m (2D RM) |
| Temperature: |
-20 Degree ~ +70 Degree |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No Sreen |
| Carrier Frequency: |
4 Band |
| Chip: |
Ublox |
| Brand: |
Unireach |

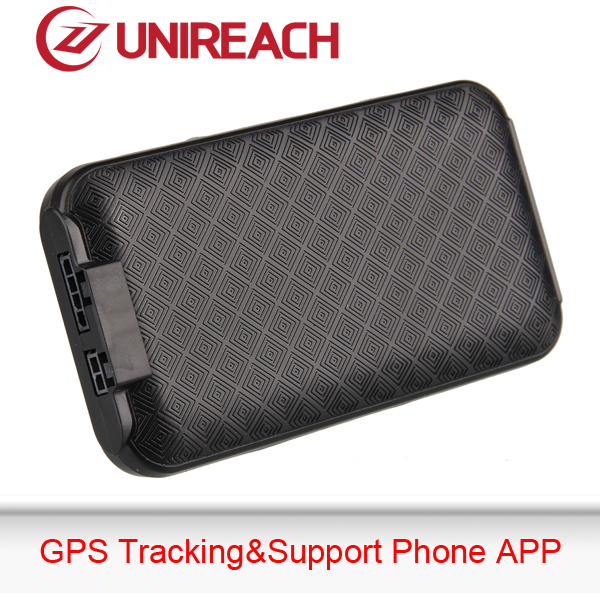

Product Description
Main functions:
* Wide input voltage range: 9-50VDC
* GSM quad band, SMS/GPRS(TCP/IP
* Troubleshooting automaticly processing
* Support vehicle original alarm
* Intelligent activation of GPS positioning
* High integrated, mini size, easy to install
* Built-in high sensitive GPS&GSM antennas.
* Built-in flash: 4M
* Built-in ON/OFF power switch
* Built-in vibration sensor, realize arm&disarmed
* Built-in battery
* Support Acc status detect
* Support engine cut with relay
* Support external power supply cut alarm
* Get location via google map link
* Track by GPRS interval report
2. Specification
| Dimension | 85(L)× 63(W)× 25(H)mm |
| Weight | 90g |
| GSM | 850/900/1800/1900MHz |
| GPRS | Class 12, TCP/IP |
| Voltage | 6-50V DC |
| GPS fixed time | Cold start 30sec(open sky) |
| Warm start | 29sec(open sky) |
| Hot start | 5sec (open sky) |
| GPS fixed precision | 10m (2D RM) |
| Temperature | -20 degree ~ +70 degree |
*GSM: 850/900/1800/1900MHz
*GPRS: Class 12, TCP/IP
*Voltage: 6-50V DC
*Current: 22mA(12vDC), 12mA(24vDC)
*GPS fixed time: Cold start 30sec(open sky)
*Warm start 29sec(open sky)
*Hot start 5sec (open sky)
*GPS fixed precision: 10m (2D RM)
*Temperature: -20 degree ~ +70 degree
*Humidity: 5% ~ 95% RH
*Dimension: 85(L)× 63(W)× 25(H)mm
*Weight: 90g
Device status indicators:
* The left led(power/working state)
Connect DC 9-36V power supply and the red LED will light continuously.
* The yellow green LED(GPS signal state)
GPS not fixed,the yellow green LED glistens . GPS has fixed, the LED
lights continuously.
* The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LED light long bright. No GSM signal, the
blue LED flashes.
GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long bright;
Power LED: long bright;
All LEDS will turn off after 5 minutes. When there is a new call, the LEDs will relight
and turn off 5 minutes later.
