GQ series tubular separator
Tubular separator general
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,our company have two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.
For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.
GQ series tubular separator .
GQ series tubular separator is liquid solid two phase centrifuge .It main applicated in liquid solid separation .
Tubular separator is a high-speed precise ,energy ,efficiency ,environmental machinery within the all separation machinery .To
achieve the separation purpose by the different material liquid proportion based the centrifugal force .As photo show the raw
material liquid is feeding by the lower of the separator and outlet by the upper machinery boday and solid remain the bowl inner
surface by the centrifugal force .
GQ series tubular separation
1. liquid clarification
2. Harvesting biomass
3. Process of granular, crystalline & fibrous suspensions
4. Ink separation
5. Bio-product extraction
6. Chinese medicine clarify
Our company tubular separator applicated in many industry process. If you have question or problem in liquid separation ,please email us .
Tubular separator parameters
Model | Bowl Speed
(rpm) | G-force | volume
(L) | voltage
(Kw) | Dimension Overall (mm) |
| Long | wide | High |
| 75 | 19000 | 15700 | 2.2 | 1.5 | 760 | 450 | 1200 |
| 105 | 16300 | 15650 | 6 | 2.2 | 840 | 500 | 1600 |
| 125 | 15000 | 157500 | 8 | 3 | 900 | 550 | 1600 |
| 150 | 14000 | 15700 | 10 | 3 | 1020 | 600 | 1600
|

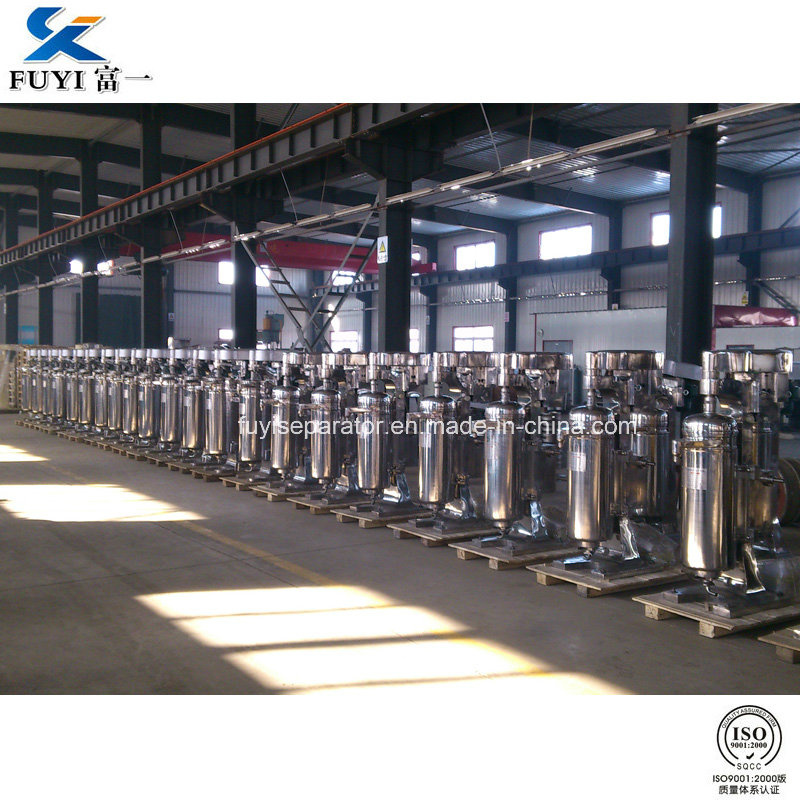

GQLB front open tubular separator machine is our company hot sale separator model , This machine has the advantage of reducing labor and save the labor cost .If you are interested in our tubular separator .
Our company was established in June 2011, formerly known as Liaoyang Sunny Pharmaceutical Machinery Co., Ltd. Our company is now a technologically advanced and high-tech enterprise integrating R&D, production, and sales. Our company is a member of National separation machinery of Standardization Technical Committees, and also the Council Member of China General Machinery Industry Association. The director of our company is one of the first separation equipment researchers in China who obtained multiple National awards. "Tubular Separator", currently in effect, is the national standard and was drafted by our company. And in the same industry, our company is one of the first batches to pass ISO9001: 2000 quality system certification.
Our comprehensive performance has reached the advanced international level. Our company and branch office cover a total area of 60mu (1mu equals to 666.7m2) and a building area of 13, 000 square meters for equipment design and manufacturing, equipment inspection and test run.
With spare parts library and the material separation lab and the full equipped equipment, our company is one of the biggest manufacturers of separator equipment in domestic market. Our team is consisting of technology developers, PHD, postgraduates and undergraduates. We have close technical exchanges with Chinese Academy of Sciences, Zhejiang University and Tianjin University. We have won lots of national technical patents. Every year our company attends world-class meetings on separator machine and learns frontier technology.
Our equipment is widely used in pharmaceutical, chemical, food, beverage, blood products, material classification, biological diesel oil and other industries for the separation of solid and liquid or the separation of liquid and liquid. At present, there are thousands of equipment with all sizes have been used in lot of well known industries. As a domestic industry leader, we would like to provide our various products, excellence quality and perfect service to meet the market demand in the whole world, win the majority of users' trust and become the pioneer of the machinery manufacturing industry in the new century!
