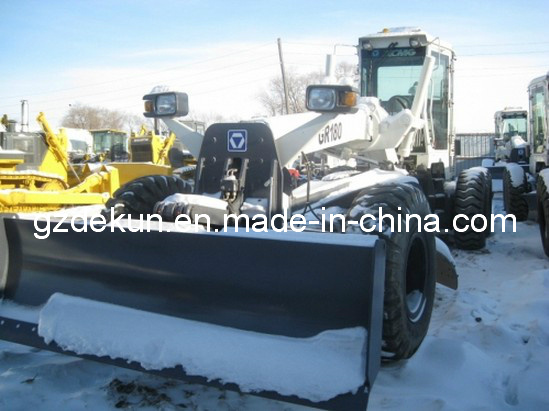

Gr180 Road Grader for Construction Machinery with CE

Product Specifications

Prod Model:	gr180
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model:	Ctaa8.3/ Sc8d190g2b1
Engine Rated Power /Speed:	138/2200kw/Rpm 140/2300kw/Rpm
Dimension (Lxwxh):	8900X2625X3470mm
Color:	Yellow
Moldboard Width X Height:	3965X610mm
Walking Mode:	Wheeled
Condition:	New
Type:	Medium-sized Loader
Certification:	ISO9001: 2000

Product Description

GR series Motor Grader

The XCMG GR series Motor Graders are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland, and so on.
They are necessary construction machines for national defense engineering, mine construction, town and country roads building, and farmland improvement.

The articulation frame is adopted and matched with the steering of the front wheel, with small turning radius, maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox, with 6 ahead gears and 3 back gears.
The international matching hydraulic parts are adopted with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable, with convenient application, and the comfort of driving is improved.
The cab is grand and nice, with wide eyeshot and good sealing.
The front bulldozing plate, rear scarification device, front scarification harrow and automatic leveling device can be added.
