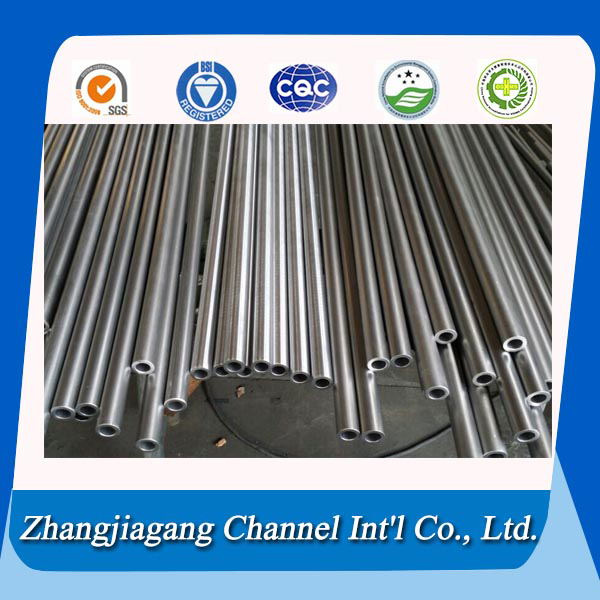

Gr2 Seamless Titanium Round Tube/ Pipe

Name: Gr2 Seamless Titanium Round Tube/ Pipe
Brand: china-manufacturer-directory.com
SKU: 747529905
Availability: InStock
Rating: 5 (62 reviews)

Supplier:	Zhangjiagang Channel Int'l Co., Ltd.
Price:	US $ 25kilogram
Min Order:	100kilogram
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Titanium pipe
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Diameter:	3-314mm
Inside Diameter:	2.5~150mm
Wall Thickness:	0.2-30mm
Length:	≤9000mm
Place Of Origin:	Jiangsu, China (Mainland)
Brand Name:	Channel
Material:	Titanium
Supply State:	Vaccum Annealing
Surface Treatment:	Hot Rolled, Cold Drawing, Pickling, Annealed
Certificate:	ISO9001;SGS
Type:	Titanium Pipes
Technique:	Seamless
Application:	Exhaust Pipe
Grade:	GR2
Shape:	Round

Product Description

titanium pipe /tube/tubing
1.Standard: ASTM B337 ASTM B338,B862,B861 SB338
2.Material:Gr1,Gr2,Gr3, Gr4,Gr5,Gr7,Gr9,Gr12 etc

high strength industrial titanium tube/seamless titanium tube for sale/exhaust y pipe

Product Description

Stricktly implements the technical specification of ASTM B861/SB861, ASTM B338/ASME SB338.

Titanium Tube Features:

1) Grade: a) Gr.1(CP titanium, low oxygen)

b) Gr.2(CP titanium, standard oxygen)

c) Gr.7( Ti-Pa, standard oxygen)

d) Gr.9(Ti-3Al-2.5V)

e) Gr.11( Ti-Pa, low oxygen)

f) Gr.12(Ti-Mo-Ni)

g) Gr.16(Ti-Pa,standard oxygen)

h) Gr.17(Ti-Pa,low oxygen)

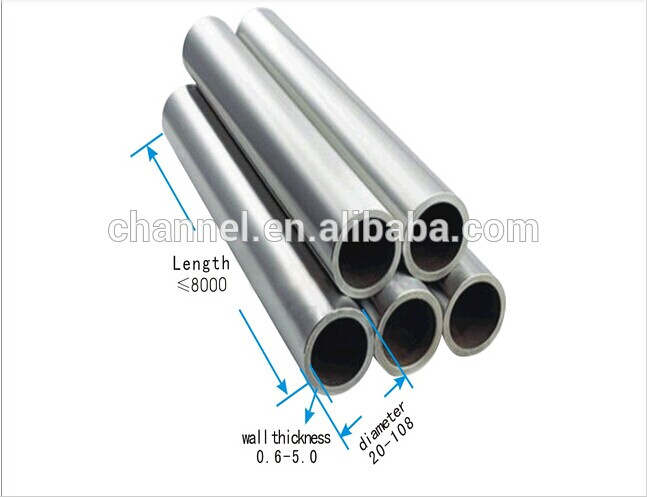

2) Sizes: Out Dia.:2.0-219mm

Wall thickness: 0.3-12mm

Length: within 18000mm

3)Products treatment: Annealed or CWSR

Package:Poly-wooden cases

Products Type:titanium tube,titanium pipe,titanium tubing

Production Name	titanium tube
Grade	Gr 1 gr2 Gr5 Gr7 Gr9 Gr12
Size	8-400.5-1.04000mm
Standard	ASTM B337 ASTM B338 ASTM B861 ASTM B862
Application	environmental protection equipment cooling pipe titanium heat pipe Electroplating equipment ring precision instruments
Feature	High corrosion resistance low density good thermal stability
Packing	Wooden case as outside, plastic bag as inside, or standard export packaging
Min Order	20kg
Payment terms	L/C T/T
Delivery time	10_30days according to the quantity and process of the product
Quality And test	Strict test is indispensible, because we must insure our clients get the best product
seamless titanium tube and weld-rolled titanium tube
category	Seamless titanium tube			Weld-rolled
	OD<15	OD>15		OD
		WT<2.0	WT>2.0-4.5	0.5-0.8		>0.8-2.0
Length(mm)	500-4000	500-9000	500-6000	500-800		500-5000
category	Weld titanium tube
	WT 0.5-1.25		WT > 1.25-2.0		WT >2.0-2.5
Length(mm)	500-15000		500-6000		500-4000
tolerance

OD (mm)	The OD tolerance		The WT tolerance
>6-25	+ 0.10		+ 10%
>25-38	+ 0.13
>38-50	+ 0.15
>50-60	+ 0.18
>60-80	+ 0.25
