Grand Theft Auto 5 Network Intelligent Alarm System (KS-898A)

Product Specifications

Prod Model:	KS-898A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	433MHz
Certificate:	CE, CCC, ISO
Name:	Grand Theft Auto 5 Network Intelligent Alarm Syste
Type:	Security Alarm Host
Networking Mode:	Dial-up
Usage:	Smoke
Function:	Networked
Wiring Mode:	Sub-Line System

Product Description

mGrand Theft Auto 5 Network Intelligent Alarm System
KS-898A

Support different language based on your requirements:
English, Portuguese, Spanish, Russian, Arabic, Italy, French etc.


1. Product Summary

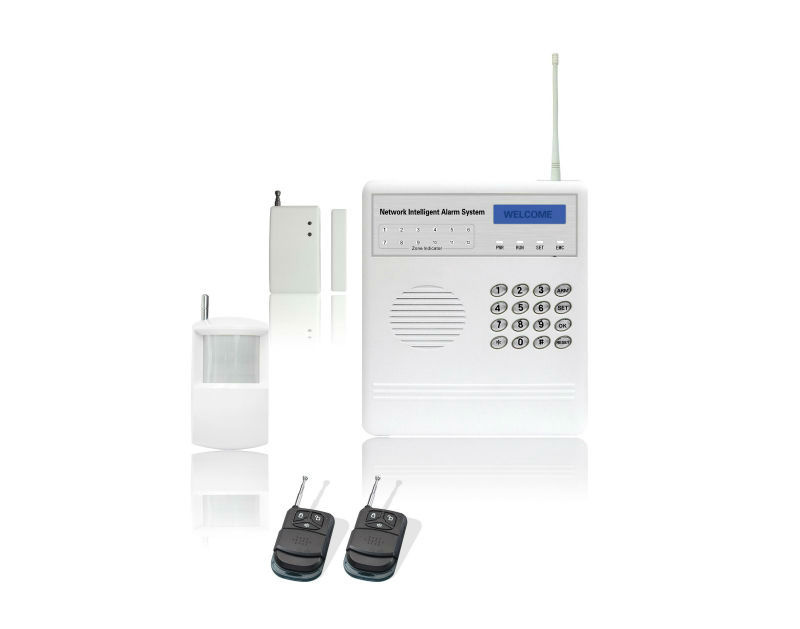

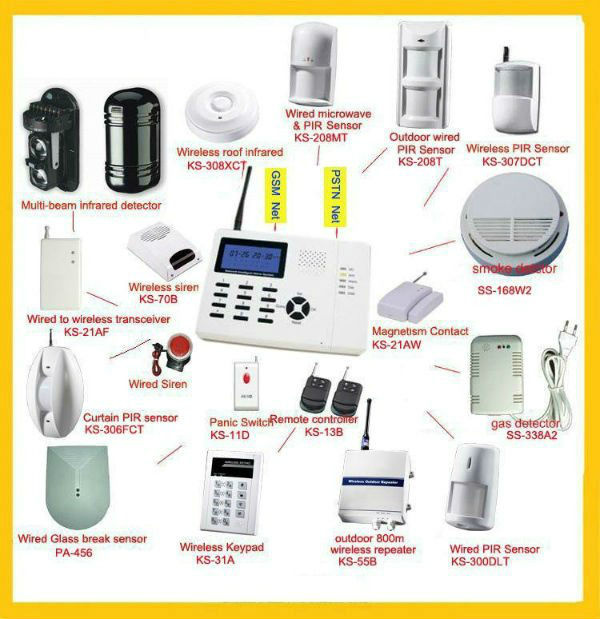

This system is a kind of Telephone Networking Alarm Console with 12 zones (8 wireless zones and 4 wired zones). It works with remote controllers (up to 8 remote controllers), various wireless (wired) sensors and wireless (wired) siren. The alarm unit can be stored 5 groups of pre-set telephone numbers (fixed/mobile telephone number and pager number). Once an alarm happens, the alarm console will activate on-site siren immediately; And dial pre-set telephone numbers at the same time.

2. Main Features
* 12-zones (8 wireless + 4 wired), 8 wireless zones can be expanded up to 24 sensors.
* Support to CONTACT ID protocol.
* Access codes contains: 1 installer code + 1 master code + 8 common users' code + address code.
* Dial 5 telephone numbers (mobile and pager number). Alarm telephone is priority.
* Phone line be cut or short-circuit will send an alarm. (Indicator or siren for optional)
* Automatically learning code between wireless PIR detector, remote controller and main console (8 wireless can be up to 24 zones and 8 remote controllers).
* Zone attribute can be programmed for fire alarm, medical alarm, emergency alarm at freedom. Each zone can be programmed with different remote controllers.
* Two timers can be set to Arm/ Disarm independently.
* Voice pre-recorded.
* Alarm delay (00-99 seconds) and Arm delay (00-99 seconds) can be set for corresponding zones.
* Main unit disassembly, slave detector disassembly, AC power cut, backup battery lower and salve detector power lower will send alarm.
* Main unit and slave detector make communication times in 24 hours to check whether there is communication malfunction. If there is a malfunction, the main console will alert corresponding zone within 26 hours.

3. Application
It is widely used in residence, marketplace, finance system and enterprise.


4. Technologic Parameter
