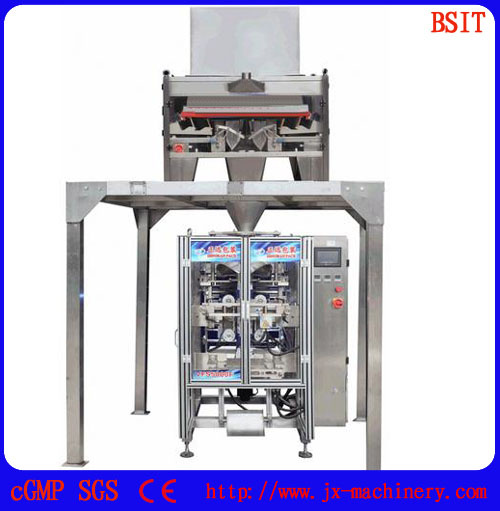

The machine unit is composed of a set of BVFS7300 automatic filling packing machine, a set of BCJS2000-F electric weighing machine and finished product output machine etc parts. It has function include automatic making bag, weighing, filling, sealing, printing, punching, punching easy tear and counting etc. The advanced design guaranteed the machine easily to be adjusted, operated and maintenance when using in different industrial filed. Also it can be used with variety of automatic weighing machine both at home and aboard.
Advantages:
1,Bag shape is handsome, flatness, large bag making range.
2,Adopt serve motor synchronous belt tension film, with automatic rectify deviation function.
3,PLC control components which adopt international brand products, which has reliable function.
4,Adopt pneumatic vertical and horizontal sealing method, which have smooth and reliable action.
Technical parameters
1. :Packing material name: Granule
2. : Bag size: 100-450×120-350mm (Bag length x bag width)
3. : Bag specification: Unknown
4. :Packing weight range: 500-5000g;
5. :Packing speed: 15-40bag/min;
6. :Packing precision: ±0.2%-0.5%
7. :Packing bag form: Pillow bag (Back sealing form with three side sealing) (Can be made other form such as: Handbag, Angle folding bag etc)
8. Packing material: OPP/PE,PAPERRR/PE,PET/PE,PP/PE,Aluminum foil film etc composite film.
9. : Acceptable max. packing roll film outer diameter: 500 mm
10. : Packing roll film paper core inner diameter: 75 mm
11. : Power configuration requirement: 5-8KW 380V±10% 50Hz
12. : Compressed air configuration requirement: 0.6Mpa 0.56 cube/min
13. : Machine weight: 1200kg
14. :Factory room configuration requirement: Floor space: About 10 square meter; Machine height: about 5.50 meter
15. Function requirement: Apply for automatic weighing packing for granule or bean. Which require weighing accuracy, packing beautifully, and the main technical index meet the stipulation.
Implementation plan
Process flow: Feeding(DT5 hopper elevator)-----Electrical weighing machine unit(BCJF2000 electric weighing machine)-----Automatic supply material-----Weighing the set weight-----Discharge to packing machine(BVFS7300 Vertical bag packaging machine)-----Packing machine making bag(Printing production date, batch number simultaneously)-----Material drop into packing bag-----Sealing, cutting----Sending out by the finished product convey belt.
