Graphite Reinforced Composite Sheet Engine Parts Auto Parts
Product Specifications
| Prod Model: |
IG-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
500~1200mm |
| Length: |
500~1500mm |
| Thickness: |
0.5~3.0mm |
| Colour: |
Black |
| Usage: |
Transmission |
| Standard: |
Nonstandard |
| Material: |
Graphite |
Product Description

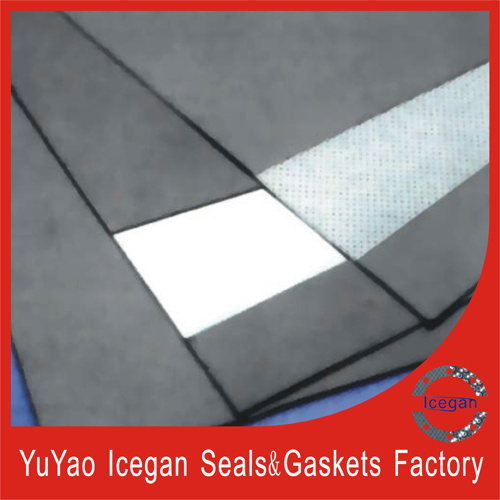

Graphite reinforced composite sheetGraphite reinforced composite sheet for the graphite plate and punching tin after rolling composite forming, basic structure is:Graphite plate + blunt tooth tin + graphite plate.Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc.Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints.At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.
Quick DetailsPlace of Origin:Ningbo, China (Mainland)
Brand Name:ICEGAN
Model Number:IG-002
Material:Graphite with inside metal,graphite and Metal
Shape:Flat Gasket
Standard or Nonstandard:Standard
Type:Graphite Gasket SheetThe performance parametersDensity:1.3 to 1.5 g/cm afterCompression ratio:5% 15%Resilient rate:40% or higherTemperature:- 240-650 ºCTransverse tensile strength:30 mpa or greaterThickening of oil absorption rate:15% or less (temperature 150 ºC, keep 5 hours) in ASTM 3 oilThickening of oil absorption rate:15% or less (temperature of 21 ºC ~ 30 ºC, keep 5 hours) in ASTM B kind of fuelThickening of oil absorption rate:15% or less (temperature of 21 ºC ~ 30 ºC, in ethylene glycol:Water (1:1), maintain 5 hours)Regular size:500 * 500 mm, 500 * 1000 mm, 500 * 1200 mm,1000 * 1000 mm, 1000 * 1200 mm, 1000 * 1500 mmThickness:1.0 mm and 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm and 3.0 mmOther size can produce according to customer's needPackaging & DeliveryPackaging Details:1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.Delivery Detail:15-30 days after received your deposit
We,YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors.We have the advanced design team and morden production line together.Gasket material include:Reinforced graphite materials for the cylinder head gaskets;Graphite gasket filler materials,reinforced asbestos and non-asbestos gasket sheet,reinforced graphite gasket,compressed non-asbestos fiber gasket sheet,pure cooper gaskets,non-asbestos gasketing paper/latex sheet,PTFE/Teflon sealing material;Asbestos tape/cloth;Glass fiber tape/cloth;Gland packing and Sprial Wound Gaskets etc..YuYao IceGan Seals & Gaskets FactoryAdd:XunQiao,LuCheng Village,DiTang Str.YuYao City,Ningbo,Zhejiang,China.315490Http://www.Icegan.ComTel:0086-574-81391083Fax:0086-574-62265652
We, YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors. We have the advanced design team and modern production line together.
Gasket material include: Reinforced graphite materials for the cylinder head gaskets; Graphite gasket filler materials, reinforced asbestos and non-asbestos gasket sheet, reinforced graphite gasket, compressed non-asbestos fiber gasket sheet, pure cooper gaskets, non-asbestos gasketing paper/latex sheet, PTFE/Teflon sealing material; Asbestos tape/cloth; Glass fiber tape/cloth; Gland packing and Sprial Wood Gaskets etc.
Metal stamping parts include: Hollow wall anchor, hammer steel anchor with plasterboard, Hammer nail anchor, key-shaped ceiling anchor etc. We also have the ability to develop and make the special products according to the customer's requirements and drawing.
Our factory is located in the south of HangZhou Bay which is very near to Ningbo Port and Shanghai Port. All the convenient conditions offer the prompt delivery.
All the IceGan people heartily welcome your visiting and cooperation for mutual interests.
