Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 3000mm*2000mm: |
1300mm*1000mm |
Product Description

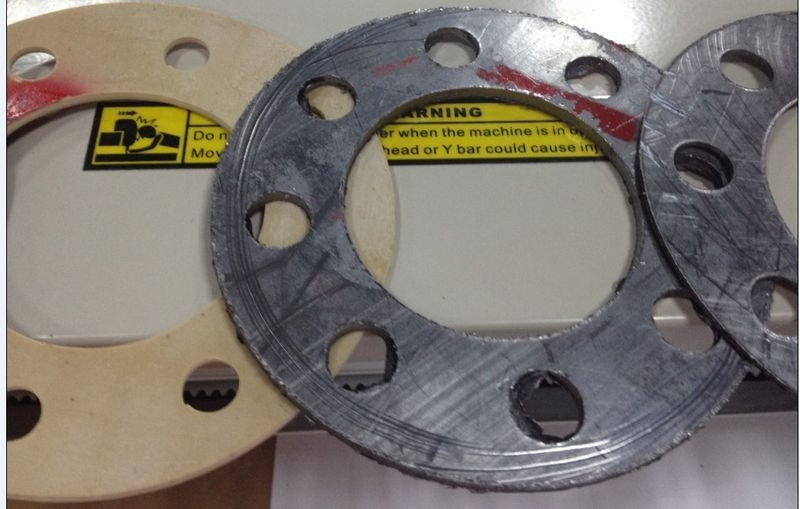

Graphite without wire mesh cut equipment
1. Computer controlled cutting of gasket materials straight from the CAD-system: Production of items from single pieces to small batch production
2. Always the same precision, without expensive die mould, no need lost time due to preparation of the die mould.
3. Complete gasket cutting solution with integrated vacuum system, gasket material is securely fixed during processing due to equip with adjustable matrix-vacuum zonesPTFE teflon CNC gasket making machine
4. Complete gasket cutting solution can cut gasket material: Non asbestos rubberized PTFE copper teflon graphite wire insert joint sheet Stainless Steel Mesh inside
5. Used for oil gas, fertilizier, petrochem, chemica, l sugar, power stations, pulp paper, engineering procurement, contractor, textile yarn smelter factory, plant industry, fiber glass thermo cover, jacketing sil, temp ceramic, heat insulation, gland packing, pusher bellows type, mechanical seal, fabric single multi layer expansion joint, dougle single braided flexible hose, asbestos non asbestos manhole, fluoroplastic lining gasket industry
6. Machine size 1300mm*1000mm 1700mm*1300mm 2500mm*1600mm 3000mm*1600 mm 3000mm*1800mm 3000mm*2000mm 3500mm*2000mm
|
Effective cutting area |
2500*1600mm |
1700*1300mm |
1300*1000mm |
|
Configuration |
Oscillating blade. drag knife pen. creasing wheel. |
|
Function |
Cut corrugated paper, foam board, blanket, coroplast, grey board, fabric, leather, gasket,
make sample small production |
|
Max speed |
1000mm/s |
|
Smallest cutting diameter |
6mm |
|
Maximum cutting thickness |
15mm/30mm/60mm v cut |
|
Control line and driver |
Servo |
|
Precision |
≤0.1mm |
|
vacuum |
5.5kw |
|
Data form |
HPGL |
|
Voltage |
220v±10% 50Hz |
|
Data port |
PCI port |
|
Data Transmission speed |
10MB/S |
|
Using dimension(mm) |
3150*2380*1150 |
2370*2200*1150 |
1960*1890*1150 |
|
Input cushion area |
32MB |
Reboard Xboard honeycomb corrugated flute carton box sample making machine
1. Laser registration system allows the user to place materials accurately on to the cutting area and to register print.
2. An Infra red safety system protects the operator.
3. Oscillating knife for cutting 15mm/0.6 inch thickness corrugated boards, coroplast, foam, PP corrugated
4. Extra foam tools for cuting 30mm/1.2 inch EPE foam
5. Extra V cut tools for V cut reboard xboard honeycomb chipboard
6. Drag knife for cutting 3mm/ 0.12 inch thickness solid boards
7. Support half kiss through whole cutting, creasing/score and pen drawing plotting direct onto material
8. Suitable for carton factory, printing plant, paper shelf/display manufacturer, packaging material plant, die cut factory, and so on.
9. Machine size 1300mm*1000mm 1700mm*1300mm 2500mm*1600mm 3000mm*1600 mm 3000mm*1800mm 3000mm*2000mm 3500mm*2000mm
