Gravity Separator Spiral Chute (SLL)

Gravity Separator Spiral Chute (SLL)
Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Price: US $ 1000-50000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: SLL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After Sale Service: Whole Using Life
Installation: Technical Guidance
Price: Negotiable
Type: Gravity Separator
Voltage: 380V
Color: Multi Color
Certification: CE
Customized: Customized
Warranty: 1 Year
Condition: New
Weight: 50kg~800kg

Product Description

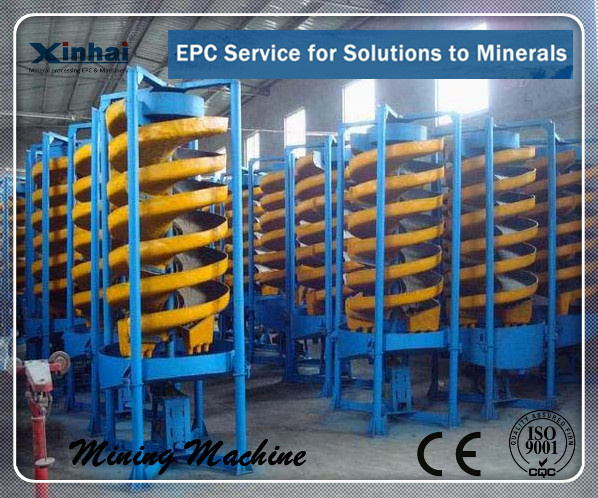

Spiral Chute
Spiral Chute— Introduction
A gravity separation equipment of separation different weight mineral by inertial centrifugal force pulp produced in helix turning motion

Spiral Chute— Capacity
0.15~16t/h
Spiral Chute— Product Improvement
There are 3 kinds of chute for user to choose, glass steel chute, Xinhai wear-resistant rubber liner, polyurethane rubber liner.

Spiral Chute— Advantages
Stable, easy control, wide range of concentration
Large capacity, enrichment ratio, high recovery rate
Small cover space, less water consumption, simple structure, no need of power
Simple installation, convenient operation, less investment, quick return
Spiral Chute— Work Principle
Ore pulps are uniformly fed into machine and form different layers as they pass across chute. Heavy minerals precipitate to bottom and are moved toward inner edge by the comprehensive action of various forces; Light minerals are moved toward outer inner due to the speedy rotation. As a result, mineral particles with different density are divided into three zones------concentrate, middling and tailing.
Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Model BLL-1500 BLL-1200 BLL-900 BLL-600 BLL-400
External diameter(mm) 1500 1200 900 600 400
Pitch(mm) 540,720 900,720,540 675,540,405 450,360,270 240,180
Pitch diameter ratio (pitch / diameter)   0.75,0.6,0.45 0.75,0.6,0.45 0.75,0.6,0.45 0.6,0.45
Transverse angle (degree) 9 degree 9 degree 9 degree 9 degree 9 degree
Spiral head number  4-2 4 4 4 4
Feeding particle size(mm) 0.8-0.037 0.3-0.037 0.3-0.037 0.3-0.037 0.3-0.037
Feeding concentration(%) 25-55 25-55 25-55 25-55 25-55
Capacity (t/h) 8-16 4-6 2-3 0.8-1.2 0.15-0.2
Overall dimension Length(mm ) 1560 1360 1060 700 460
Width(mm) 1560 1360 1060 700 460
Height(mm) 5230 5230 4000 26000 1500
Weight(kg) 800 600 400 150 50
