Product Specifications
| Prod Model: |
XL532D1255 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

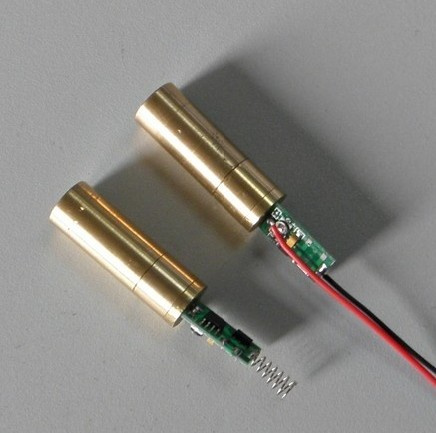

Green DOT Laser Diode Module |
| Power: |
1~50mw |
| Size: |
12x55mm |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
Product Description
Features:
High Stability
Low consumption
Low nosiy
Application:
Green Laser Pointer
Laser Lecture devices
Specifications:
Wavelength: 532nm
Power: 5~50mw
Circult: ACC Mode
Threshold current: : 100mA
Operating current: <200mA
Operating voltage: DC 3V-5V
Beam divergency: 1.0mrad
Mode: TEM00, continously output
Grade: II, IIIa, IIIb
Working Temperature: +10~35 Degree C
Storage Temperature: -10~80 Degree C
Lifepan (under normal operation): 5, 000hours
Size: 12mmx55mm
Starting Time: <10 minutes
Stability: <± 20%
Xinland International Limited, a professional opticalelectronics products supplier in China and specilized in developing and selling of all professional laser products and laser componets, such as red, green, blue, blue-violet laser module(including DOT, line and cross line laser module), laser pointer/flashlight, DPSS laser, laser level, laser sight/riflescope, laser stage lighting, laser equipment and bore sight. Meanwhile, We also can supply laser accessories, such as laser diode, collimator lens, laser protection googles etc.
These laser products are widely used in the field of test detection instrument, military equipment, laser medical equipment, laser marking, laser ranging, laser swinger, barcode scanning, location identification, teaching, power tools, measuring ranging, cutting marking, stage lighting and laser landmarks and so on
