Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Customized |
Product Description

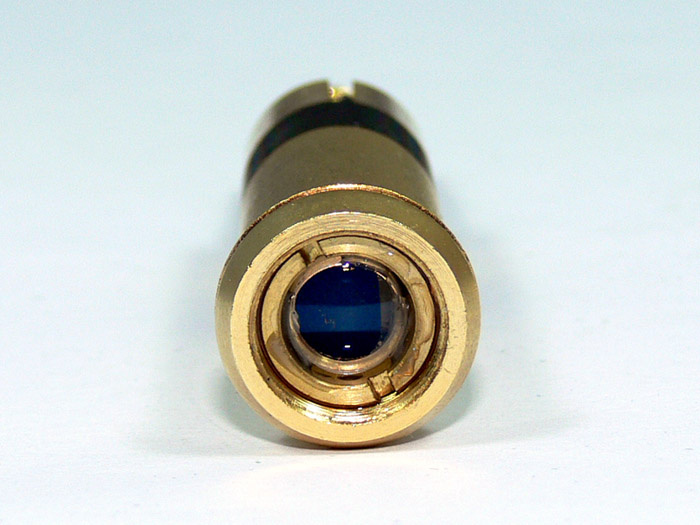

Green Laser Module ( GLM )
KEY FEATURES
1) Wide temp. Operating
2) Low Power Consumption
3) Small Divergence
4) High reliability
5) Mini Size
6) APC Control
Application
1) Laser Alignment
2) Laser Sight
3) Laser Positioning
4) Surveying Instrument
5) Medical Instrument
6) Military Equipment
Wide temperature operating GLM is our great solution for the narrow operating temperature range of the normal green laser module. Its high brightness, wide operating temperature range are very fit for the use in the wild environments and many tough out door conditions, such as in hot and cold places, deserts or highly humid places.
Specifications GLM-001 GLM-005 GLM-010 GLM-020
Optical Output Power ( CW) 1mW 5mW 10mW 20mW
Wavelength 532nm
Beam divergence 1.5mrad 0.6mrad 0.4mrad 0.2mrad
Power stability >90%
Operating temperature -10 ~ 50° C, 0 ~ 45° C
Housing dimension 7*22mm, 10*22mm, 10*35mm, 10*42mm, 10 *55mm
12*22mm, 12*35mm, 12*42mm, 12*55mm
Elite Optoelectronics Co., Ltd. is a leading designer and manufacturer of laser diode modules, DPSS laser module and laser instruments. With experienced R&D team and large-scaled production capacity, Elite is world-class laser diode module supplier. Elite's products have been successfully used in a wide range of diversified applications from industrial level, laser pointer, barcode scan, medical instruments, detecting instruments, laser component, bore sight, laser collimator, laser performance system, laser tools etc.
Elite's product line includes an extensive range of laser modules and systems for the laser/electro-optic industry. Our laser modules come in wavelengths ranging from 405nm to 980 nm with various power ranges. With certificates of ISO 9001: 2000, FDA, IEC, GB, etc, we are assuring our customer with quality, reliable and consistent products deliver.
Elite has successfully developed the Industrial Green Laser Module (GLM) which has a wide working temperature ranging from 0-45° C. The GLM is in stable operation, low power output and small size of 8 x 28mm, 10 x 30mm.
Share your ideas, Elite's experienced, highly skilled and dedicated technical staff will help you to solve your design problem and help with your selection of either stock or customized products for special application.
