Grf Passive 3 Way Professional Line Array Speaker
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
4/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Passive 3 Way Line Array Speaker System,Professional Speaker Equipment
3-way line array speaker, touring line array, passive line array system, professional loudspeaker, PRO speaker, pa speaker, PRO audio, speaker, loudspeaker, Line Array.

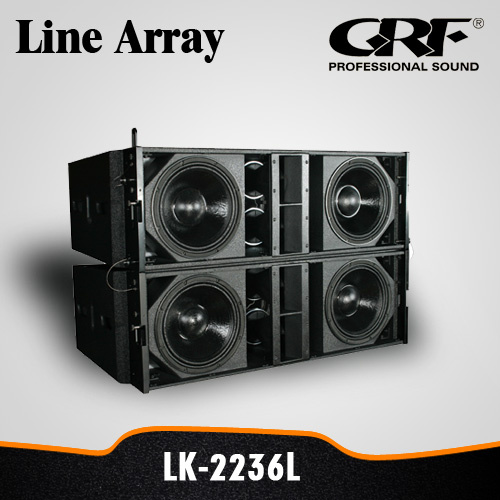

1. LK-2236L is a 3-way line array speaker, it is specially designed for largescale sound reinforcement applications. LK-2236L can be two way full range as well (HF+MF&LF by built-in crossover, LF bi-amp ), this is easy done by a switchable crossover at rear panel.
2. LK-2236L housing 2× 12"LF woofers, one horn loaded 10" MF driver and two 1.5"exit HF Neodymium compression drivers with 3" voice coil mounted to a dedicated wave-shaping device. 12" woofers are coated by all weather-proof material which is IP43 level.
3. The mechanical and acoustical design enables flown vertical columns of up to twelve loudspeakers to be suspended using vertical splay angles between them of 0° To 6° With a 1° Resolution.
4. The symmetrical dipolar arrangement of the LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design and this results in an exceptional 120° Horizontal constant directivity dispersion control nominally being maintained down to 350Hz.
5. Cabinets are mechanically connected using the rigging likes on both sides of the cabinets front, and with a central rigging link at the rear of the loudspeaker. The LK-2236L cabinets is constructed of 18mm/25mm birch plywood.
6. The front of the loudspeaker cabinet is protected by a rigid metal grill. The side and rear panels incorporate six handles, and two NL8 connectors wired in parallel are also mounted at the rear.
7. LK-2218 & LK-2218B are the ideal subwoofers for LK-2236L line array speaker. The 18" woofers are using imported & reinforced paper cone, voice coil is pure cuprum round-wire and its frame is 405 degree
Fireproof material. What's more, the spider is 360° Thermal Stable material.
Applications:
1. Big Outdoor Performance
2. Concert Sound
3. Big Live Show
About Us
Thank you for your visit
We warmly welcom you to visit our factory
|
Model |
LK-2236L |
LK-2218 |
LK-2218B |
|
Type |
Passive Line Array |
Passive Subwoofer |
Passive Subwoofer |
|
Frequency Response |
85Hz ~ 18KHz (±3dB) |
32Hz-150Hz |
32Hz-150Hz |
|
Component |
LF:2 × 12" /MF:1 × 10" /HF: 2 × 1.5" |
18" ×2 |
18" ×2 |
|
Related Power |
LF:800WAES,2400W Peak MF:300W AES, 900W Peak HF:120W AES, 300W Peak |
1000W AES, 3000W Peak |
1600W AES 4800W Peak |
|
Recommended Amplifier |
LF: 400W-800W MF:400W-650W into 4ohms HF:200W-350W |
800W-2000W into 4 ohms |
1500W-3200W into 4 ohms |
|
Nominal Impedance |
8 ohms |
4 ohms |
4 ohms |
|
Sensitivity |
LF: 101dB MF:105dB HF:106dB |
103dB |
105dB |
|
SPL |
136dB/1Mcontinuous 142dB/1Mpeak |
128dB/1Mcontinuous, 134dB/1M peak |
132dB/1Mcontinuous, 138dB/1M peak |
|
Dispersion |
90°×6° |
- |
- |
|
Connector |
2×Neutrik NL8 |
2×Neutrik NL4 |
2×Neutrik NL4 |
|
Finish |
Textured Black Paint |
Textured Black Paint |
|
|
Grill |
Black Brush Finished Stainless Steel |
Black Brush Finished Stainless Steel |
|
|
Dimensions |
360x1100x570mm |
540x 1100 x 945mm |
540x 1100 x 945mm |
|
Packing Dimensions |
810x1210x440mm ( 0.43CBM ) |
1295x1215x 6155mm |
1295x1215x 6155mm(0.97) |
|
Net Weight |
72kg |
105kg |
120kg |
| Prod Model: |
LK-2236L/LK-2218[LK-2218B] |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| THD: |
0.005%-0.01% |
| Noise: |
<95dB |
| Certification: |
CCC |
| Monitor: |
No Display Screen |
| Application: |
Large-Scale Activities |
