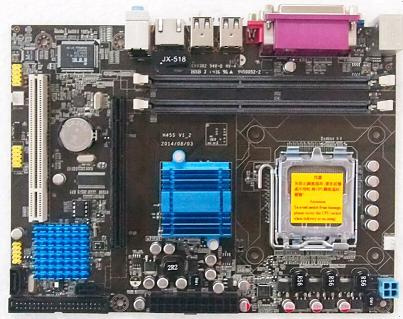

GS45 chipset LGA 775 Support DDR3 PC Motherboard specification as follow:
1. Intel GS45+ICH9 Chipset, LGA 775, Supports 1333/1066/800 MHz FSB.
2. Supports 2*DDR3 1333/1066/800memory, Dual Channel, support up to 8GB by 2 DIMM slots.
3.2*SATA, 4*USB2.0, 1*VGA/IDE, 1*PCI Express x16, 1*PCI Express x1.
4. Realtek 8105E 10/100M LAN Controller
CPU
Supports 800/1066/1333 MHz HOST BUS Frequency, Supports Intel Pentium HT (Hyper Threading Technology) CPU, Supports Intel Core 2 Duo LGA 775 CPU, Supports Intel Conroe_L LGA 775 CPU, Soupports Intel Core 2 Quad LGA 775 CPU, Supports XEON 1333 MHZ Dual Core 771CPU
Chipset
Northbridge: Intel GS45 Express Chipset
Southbridge: Intel ICH9
Memory
Supports DDR3 1066/800 memory
Dual Channel architecture support up to 4GB by 2 DIMM slots
Graphics
Intel® Graphics Media Accelerator 4500MHD
1* VGA port
Audio
Realtek ALC662 6 Channel Audio Codec
LAN
Realtek 8105E 10/100M LAN Controller
Expansion Slot
1 *PCI Express X16 slot
1*PCI slots
I/O Connectors
1 *IDE connector(option)
2 *SATA 3Gb/s connector
1* front panel connector
1* front audio connector
4* USB 2.0/1.1 connector
4 *USB 2.0/1.1 port
1* COM port
1* PS/2 port
1* VGA port
1 *RJ-45 port
1 *LPT port
1 *audio jacks
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
BIOS
8M FLASH ROM
CPU |
Supports 800/1066/1333 MHz HOST BUS Frequency,Supports Intel Pentium HT (Hyper Threading Technology) CPU,Supports Intel Core 2 Duo LGA 775 CPU,Supports Intel Conroe_L LGA 775 CPU,Soupports Intel Core 2 Quad LGA 775 CPU, Supports XEON 1333 MHZ Dual Core 771CPU |
Chipset |
Northbridge: Intel GS45 Express Chipset |
Southbridge: Intel ICH9 |
Memory |
Supports DDR3 1066/800 memory |
Dual Channel architecture support up to 4GB by 2 DIMM slots |
Graphics |
Intel® Graphics Media Accelerator 4500MHD |
1* VGA port |
Audio |
Realtek ALC662 6 Channel Audio Codec |
LAN |
Realtek 8105E 10/100M LAN Controller |
Expansion Slot |
1 *PCI Express X16 slot |
1*PCI slots |
I/O Connectors |
1 *IDE connector |
2 *SATA 3Gb/s connector |
1* front panel connector |
1* front audio connector |
4* USB 2.0/1.1 connector |
4 *USB 2.0/1.1 port |
1* COM port |
1* PS/2 port |
1* VGA port |
1 *RJ-45 port |
1 *LPT port |
1 *audio jacks |
Accessories |
CD DRIVER, BACK PANEL,MANUAL,SATA CABLE,IDE CABLE. |
BIOS |
8M FLASH ROM |
SIZE |
229mm x 172mm |
PACKING |
20PCS IN ONE CARTON |
SZ DJS Co., Ltd. is professional manufacture of computer motherboard & video card. We can assemble desktop computer also.
SZ DJS Co., Ltd. Has been producing OEM intel chipset motherboard & video card more than 10 years. Its solid experience, boundless enthusiasm and stringent quality standards enable we to provide products to meet all kinds of requirements from worldwide electronic chain stores and prime distributors.
The mission of SZ DJS Co., Ltd. is to be a major worldwide provider of high value and high quality products. We welcomes all new partners to develop and share in the extensive global business opportunities together.
We deeply understand that the life of enterprise comes from the continuous innovation and development. We are always doing like that. We also believe that SZ DJS Co., Ltd. Will be a world-grade enterprise with a greater international competitiveness in the near future.
