Product Specifications
| Prod Model: |
G11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Requirements: |
AC110V~220V 50Hz or 60Hz |
| Standby Lithium Battery: |
DC7.4V, 700-800mA, 4000mA Optional |
| Standby Battery Working Hours: |
More Than 10 Hours |
| Type: |
Home Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Electric Alarm |
| Working Principle: |
Electromagnetic |
| Usage: |
Smoke |
Product Description

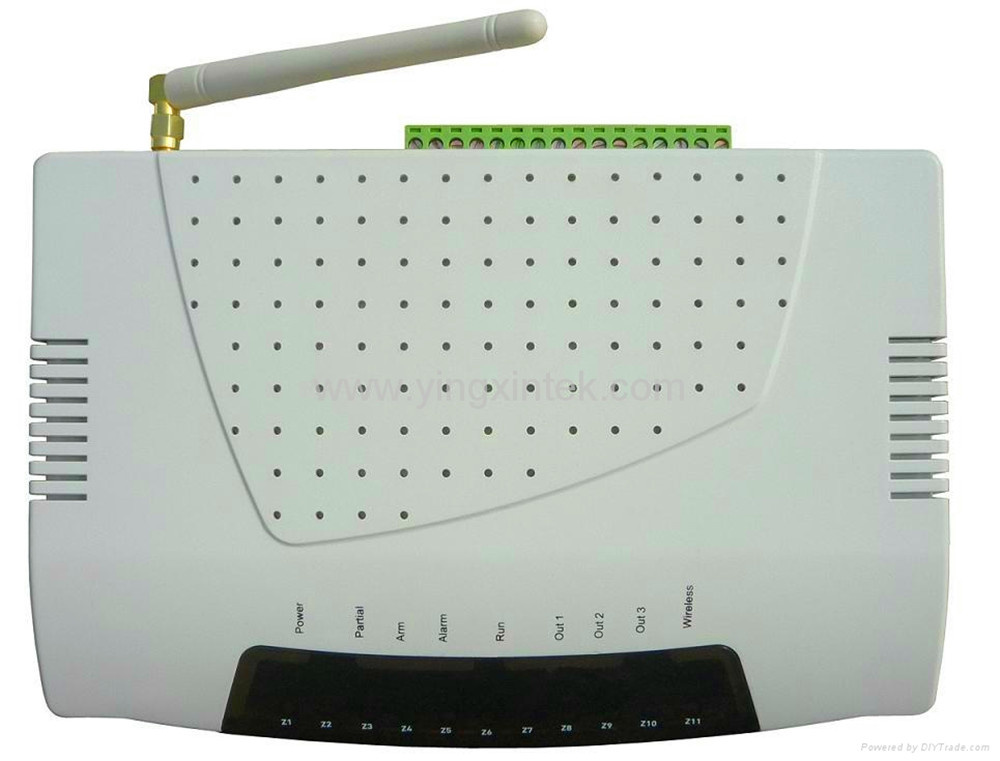

NAME: GSM ALARM SYSTEM
MODEL: G11
The alarm system is based on GSM network. With a GSM SIM card, it can be used wherever you want and the is no need to connect to a telephone line, this more is convenient and easier to install and use.
Main functions
English language SMS and voice reminder, Chinese/Russian are optional
Each zone has independent arm/disarm functions
2 wired zones and 12 wireless zones
With 3 Relay outputs to control your home appliances
With voice reminder when users operate the system
Works with external Microphone
Works with external speaker
Automatically send SMS to remind the user when the GSM signal becomes weak
Work with wired & wireless sensor
Each wireless zone can use countless wireless sensors
Users can pre-record a voice message in the system and playback
When system is alarmed
Send SMS text to 3 mobile phones and auto-dial 3 phones
To inform the user
Users can use any phone to listen what is happening inside
The building where the alarm is installed.
Program and control the system by keyboard, remotes, SMS or phone
Send SMS to inform users which zone is alarming and will call users when the system is triggered
Uses SMS to change the zone name & content
Use SMS to inquiry the system status wherever
With password protection, System will inform users when an incorrect password is tried 3 times
Use any phone to call the system and anyone inside the house -can talk to you through a speaker.
Wireless Emergency function (24 hours zone)
With Backup rechargeable battery, system can work even if there is a power is failure.
Send SMS to inform you when there is a power failure
Or returns to normal.
When GSM signal is weak or there is no signal, it will send SMS or sound the siren to inform users
Specification
A) GSM network frequency Standard:
900/1800MHZ, 850/1900MHZ optional
B) External power failure alarm: Start-time: Less than 1s
C) Alarm response time Less than 10s (GSM with normal signal)
D) Power requirements: AC110V~220V 50Hz or 60Hz
Standby lithium battery: DC7.4V, 700-800mA, 4000mA optional
Standby battery working hours: More than 10 hours,
4000mA for over 3 days
Relay contact output 1 & 2: 7A, 240VAC; 10A, 125VAC;
10A, 28VDC
Relay contact output 3: 3A, 120VAC; 3A 24VDC
E) Working conditions Operating temperature: -20 to 60
Humidity: ≤ 95%
F) Wireless frequency: 433MHZ
