Product Specifications
| Prod Model: |
BL4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Send Bulk SMS MMS |
| Interface: |
USB |
| Warranty: |
1 Year |
| Module: |
Based on Wavecom Q24plus Module |
| Frequence: |
GSM850/900/1800/1900MHz |
| Support: |
Stk for Mobile Recharge |
| Type: |
External |
| Interface Type: |
USB |
| Application: |
Household |
Product Description

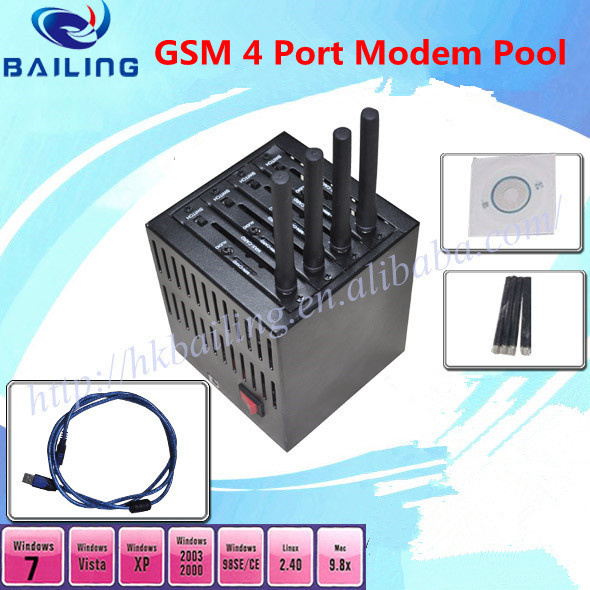

GSM Modem Pool 4 Port With Wavecom Q24PLus Module
4 Port Modem Pool description:
Key Features
1. USB GSM modem pool
2. Based on Wavecom Q24plus Module
3.4 SIM card(big/small) slots
4. Wireless access to internet
5. Comply with GSM phase2 standard
6. Cluster send and receive SMS
7. Maximum transmitting speed 115KBps
8. Input voltage: 100 to 240V
9. Working temperature: -20 to +60 degrees Celsius
10. Storage temperature: -25 to +70 degrees Celsius
11. Double tone multi-frequency function(DTMF)
12. Size: 48 X 19 X 20cm
13. Send 600/800/1000/1200 SMS per hour by one port
14. Weight: 2kg
Accessory:
1.4 Port Modem Pool host one
2. USB Cable
3.4PCS SMA Antennas
4. CD for driver
Basic Features:
Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
Baud Rate: 300-115200 bits / s
Automatic baud rate: From 2400 to 19200 bits / s
Fax support three
Switched voice and fax
V. 42, V. 42bis
GPRS compatible
WAP compatible
SMA Antenna Interface
SIM Card Outlet
Power connector
USB
AT command control ( GSM 07.07 and 07.05)
Application:
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township
Hardware Feature:
Support dual band: 900/1800 MHz or quad-band GSM: 850/900/1800/1900 MHz
Meet the ETSI GSM 2 + standards
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
5 -24 VDC power supply (which be directly connected to the nickel- metal
Hydride or lithium batteries)
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Size: Standard 1U chassis
Supported operating systems:
--Windows 7 (Home, Premium, PRO, Ultimate, Enterprise)
--Windows Vista (Home, Business, Ultimate, Enterprise)
--Windows XP (PRO and Home)
--Windows Server 2003 (original and R2)
--Windows 2000 (Server and PRO)
