Product Specifications
| Prod Model: |
G33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protect Level: |
IP55 |
| Temperature: |
-10-+55 |
| Insulation Level: |
Grade B |
| Standby Battery: |
DC12V/1.2ah |
| Type: |
Industry Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Certification: |
FCC |
| Application: |
Outdoor |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electro-Optical Type |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥110dB |
| Receive Frequency: |
433.92MHz |
| Usage: |
Auto |
Product Description
GSM multi-function power alarm system G33 is based on the transmit of GSM SMS datum and the GPRS MMS communication protocol, also through the intelligent voice platform to achieve the teletransmission and control of alarm data. It is mainly used for protecting the power lines, transformers and some other power supply device, it can working for the anti-snip, anti-pilferage, and prevent some damage. The host is with a fully sealed aluminum die casting shell, waterproof, stable and reliable, can applicable for the all-weather outdoor envirnment. Have widely used for the power grid, petroleum, mining and all other outdoor power equipment etc., this alarm can be used independently, can also connect with the center monitoring software which have installed in the alarm center.

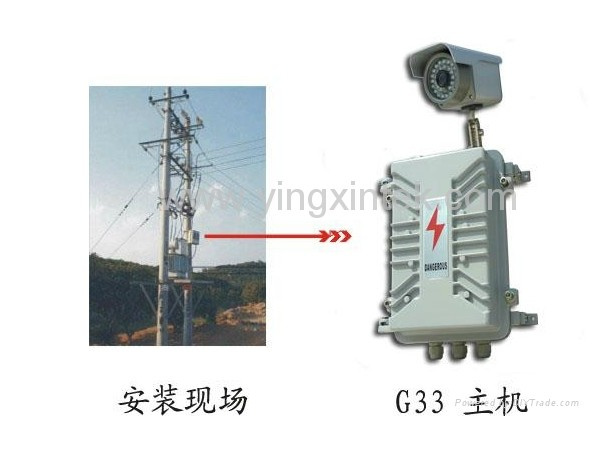

GSM Power Facility Alarm system G33
Specification
*GSM frequency: Support the GSM 850/900/1800/1900MHz
* Alarm Mode
A. SMS information
B. MMS data information
C. Auto-dialed voice inform
* Alarm response time: 8s, GSM is in normality
* Siren volume: 110 dB
* Electric power network: Connect mode: Y
Phase-Neutral rated work voltage: AC220V
Phase-Neutral lowest work voltage: AC110V
Phase-Neutral highest work voltage: AC270V
* Biggest capacity of insurance tube: 5A
* Standby battery: DC12V/1.2AH
Or DC12V/1AH, Ni-MH battery
* Anti- electromagnetic interference: IEC55022
* Insulation level: Grade B
* Protection level: IP55
* Temperature: -10-+55
Humidity: 95% (non-condensation)
| model | G33 |
| Alarm Mode | SMS information |
| MMS data information |
| Auto-dialed voice inform |
| Alarm response time | 8s, GSM is in normality |
Established in year 1999, Shenzhen XinYingxin Electronics Technology Co., Ltd. is specialized in research and development, the production and the sale, is an enterprise with high technology in smart home system products, fireplace intelligient household appliances.
Our company is a professional manufacture on designing, manufacturing various inds of electric fireplace with smart control and fireplace main control PCB boards. As our marketing center, Shenzhen Xin Ying Xin electronics technology Co. Ltd we have our own factory and professional workers with more than 10years experience of fireplace manufacturing, we can offer high quality products at their best price as well as OEM/ODM service for you.
Our 8, 000-square-meter factory has 500workes and 6production lines. In order to guarantee the creativeness of every product, we set up an R&D team with more than 16 engineers, who are technology leaders with over 8 years experience, developing at least 3 new products monthly. In addition, we have a molding workshop covering 2, 000 square meters, allowing us to make unique molds for our products.
Our 75QC staff members with over 3 years experience ensure that we can pass CE and RoHS standards. As such, we successful exported products to Europe and north-America. We are also planning to expand our export to south America.
Xin Ying Xin is aiming to offer more excellent products to benefit consumers. We believe that a long-term partnership is built upon mutual communication and understanding.
Welcome to Xin Ying Xin, you will find your ideal business partner!
