Product Specifications
| Prod Model: |
RTU5016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Net Weight: |
600g |
| Exterior Dimension: |
Lxwxh 150X71X30.30mm |
| Humidity: |
Relative Humidity 90% (Condensation Free) |
| Temperature Range: |
-20-+60celsius |
| Application: |
Special Equipment |
| Usage: |
Personal |
Product Description

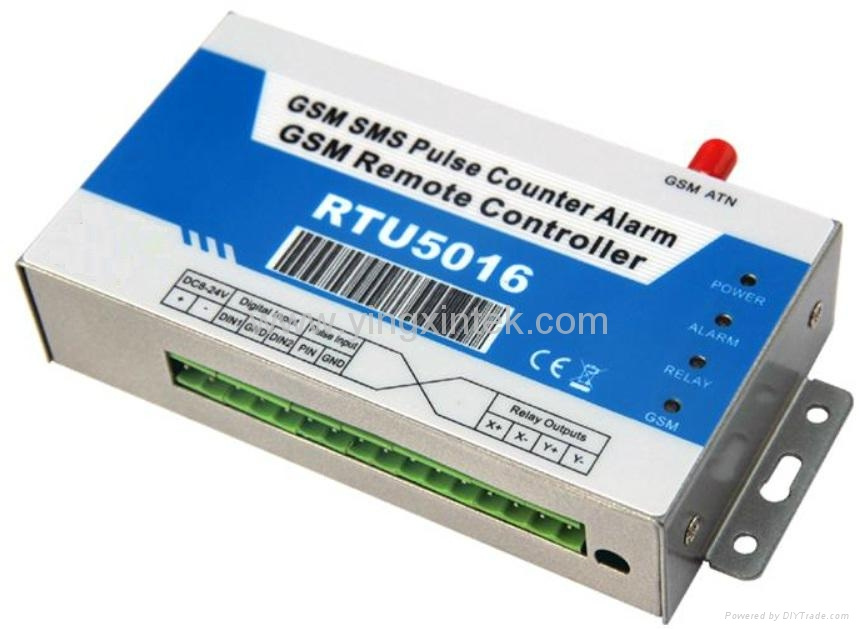

Model: RTU 5016 (2DIN, 2Dout, 1PIN)
Name: GSM Pulse Counter Alarm Controller (GSM RTU)
Remote switching machines with a FREE call from your mobile phone!
Remote inquiry the Unit status with a FREE Call from your mobile phone!
Inquiry the Pulse Counter Value with a FREE Call from your mobile phone!
Ultra-Low Cost & Multifunctional & Programmable GSM RTU?
The RTU5016 can meet your requirements!
The GSM SMS Pulse Counter Alarm Controller RTU5016 is a very simple programmable I/O ports (2DIN, 2DOUT, 1 PIN) and cost effective GSM RTU which special for remote pulse counter monitoring, also it can be used for remote switching machine, automation system and other applications.
It equips one Pulse Counter input, the range is 00000~99999. The user can setup start value, interval alert value alert, interval time to alert, total value to alarm, when total value alarm occurrence, it can active one or both of the relay outputs and send programmable SMS to authorized phone numbers.
Mainly Features of the GSM SMS Controller:
1. Can be operated from anywhere, no distance limitation, Android App and iOS App iKeypad for quickly operation;
2. Din Rail 35mm installation;
3. No call charges. The GSM SMS Controller rejects the call from authorized number then carry out the programmable actions on the first 'ring';
4. Multiple applications. (gates, barriers, temperature, pulse counter, humidity, machines, automation systems);
5. Secure - Using caller ID and password for identification, unknown callers are ignored;
6. Programmable by SMS Commands with password protection;
7. External AC Power monitoring, AC On/OFF will send SMS to authorized phone numbers;
8. Timer Report— Can setup every x hours automatically send its status/Value to the authorized numbers;
9. Rechargeable Backup Battery inside can last 18hours;
10. Upto 6 authorized phone numbers, each number can be used to receive call or SMS or both of call and SMS while alarm occurrence;
11. Authorized phone numbers can be used for dial to switch ON/OFF one or both of the relay outputs, inquiry status, armed or disarmed;
12. Two Digital inputs (Dry Contact, NC/NO) for door sensor, motion sensors or other sensors, the input activated can active one or both of the relay outputs and send programmable SMS and dial to authorized phone numbers;
13., Two digital outputs (dry contact, NO) with relay rating 10A/240VAC for connecting the switch of the air conditioner or machines, the outputs can setup as always ON, Pulse output, by SMS, authorized phone number dial in, and alarm events;
14. One Pulse Counter input, can setup start value, interval alert value, interval time to alert, total value alarm, when total alarm occurrence can active one or both of the relay outputs and send programmable SMS to authorized phone numbers;
15. Based on GSM Network, applied to many applications.
Specifications of the GSM SMS Controller:
DC Power supply: 8~24VDC 2A
Power consumption: 12V input Max. 50mA/Average 50mA
Frequency range: Dual band 900/1800 MHz (Default)or 850/1900Mhz(Optional)
SIM Card: Supporting 3V SIM Card
Antenna: 50 Ω SMA Antenna interface
Temperature range: -20-+60 ° C
Humidity range: Relative humidity 90% (condensation free)
Relay Output: 2, Dry Contact, NC or NO, 10A/240VAC
Digital Input: 2, Dry Contact, NC or NO
Pulse Input: 1, range is 00000~99999.
Backup Battery: 900mAH, last 18hours
Exterior dimension: 150mm*71mm*30.30mm
Net Weight: 600 g
Standard Package list of the GSM SMS Controller:
GSM SMS ControllerX 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)
Backup Battery X 1 (Inbuilt)
User Manual X 1
Note: The package does not include any SIM card.
Optional: Door Sensor, Motion Sensor, Temperature Sensors and others.
Export Markets: All world
PricingFOB shenzhen
Payment DetailsTT/western union
Minimum Order Quantity100
Lead Time30days
Standard MetCE, FCC
