Product Specifications
| Prod Model: |
GSQ6033 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Type: |
Glass Cutting Machine |
Product Description
Loading Machine GSQ6033AS / AD / AS2P / AD2P
L*W*H: 7200× 3850× 900(± 50)mm/ 15000× 4850× 900(± 50)mm
L*W*H(glass sheet): 6100*3400mm
Quantity of loding position: 1 / 2 / 2 / 4
Glass thickness: 2-22mm
Working pace: < 50s / R/L1< 50S R/L2< 65S
Flexible configuration from a single station to multi-station, as well as cutting island storage system. GSUN loading machine focus on not only stable and reliable operation and the settings of software, but also the management procedure, such as how to associate the management of original glass, how to associate the cutting sequences, etc.

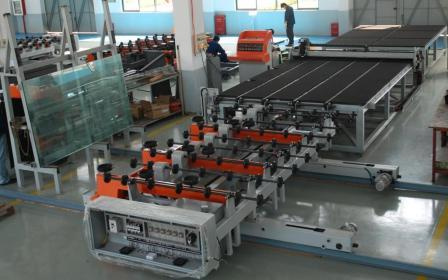

Cutting Machine GSQ6033BQ / BS
L*W*H: 7200× 3800× 900(± 50)mm
L*W*H(glass sheet): 6100× 3400mm
Glass thickness: 2-22mm
Speed: Max120m/min
Cutting presicion: ± 0.20mm/2000mm
GSQ series glass cutting machine, central computer controlled, through a friendly man-machine interface, make the operation as simple as using ordinary printer. We believe, cutting will not be complex.
Break-out Table GSQ7033C / GSQ7030CT
L*W*H: 7000× 3300× 900(± 50)mm
Quantity of break-out bars: 1+3 / 1+2
Quantity of fans: 4
Air-flow design ensures uniform floatage. Linkage break-out pole ensures synchronous operation.
GSUN team has been committed to R&D and manufacturing flat glass cutting equipment, and providing glass conveying equipment and system solution of plant. Since its founded, the concept of independent and innovation is always going with GSUN growing. With keen insight for the development trend of glass deep-processing technology, and unremitting pursuit for providing first-class equipment, GSUN has been providing customers excellent equipments and services.
