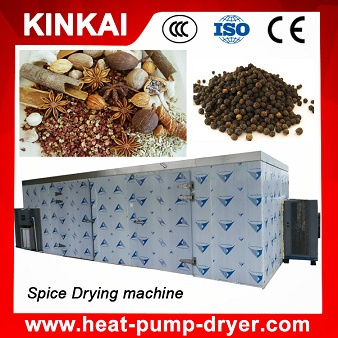

Guangzhou Factory Price Spice Dryer

Product Specifications

Prod Model:	JK03RD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dryer Type:	Heat Pump Dryer+Drying Chamber
Drying Type:	Hot Air Circulating
Heat Energy:	25% Electricity+75% Air Source (Free)
Drying Capacity:	200 to 2500 Kg Per Batch
Drying Temperature:	10~75c
Heating Capacity:	12kw
Cooling Capacity:	7.5kw
Control System:	Automaitc
Type:	Dryer
Voltage:	380V
Customized:	Customized
Power:	2.8kw

Product Description

KINKAI third generation heat pump dryer is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator, circulating hot-air assures uniform drying and high efficiency.

Model:  JK03RD, JK06RD, JK10RD
Power Supply:  220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp:  75ºC
Working Temp:  -10~45ºC
Functions:  Heating / Cooling / Dehumidify
Dryer Type:  Batch Type

Features:
1. Adopt close dehumidify + circulating drying type, saving operating cost;
Without waste gas and waste heat pollution, low noise
2. PLC + Touch Screen, operating easily; can setting different drying curve, Suitable for drying different materials.
3. Second waste heat recovery technology (patent)
Adopt air to air heat exchanger dehumidify and recovery waste heat at the same time, the heat efficiency is high and energy is saved.
4. By using the forced ventilation function, there are the adjustable air distribution plates inside the oven. The materials can be dried uniformly.
5. The temperature: hot air heating 10-75°C, max 75°C.
6.  The baking plate dimensions and materials can customize as customer request.
7. During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good dehydration, keep nutrient content;
8. Safe and reliable operation, automatic intelligent control, 24-hour continuous drying.

Technical Parameters

Model		Unit	JK03RD	JK06RD	JK10RD
Heating capacity		KW	12.00	26.00	35.00
Cooling capacity		KW	7.50	20.00	25.00
Power supply		V/PH/HZ	220/1/50 or 380/3/50	380 / 3 / 50	380 / 3 / 50
Power input	Compressors	KW	2.80	5.30	9.30
	Evaporator Fan motors	KW	0.78	0.78	1.50
	Hot air circulating fan motors	KW	2.00	2.00	2.00
	Dehumidify fan motor	KW	0.37	0.37	0.55
	Auxiliary electric heater	KW	3.00	6.00	9.00
Total Running current		A	35.00 or 20.00	30.00	45.00
Dehumifification amount		L/H	12	25	40
Max. hot air temperature		ºC	75	75	75
Working ambient temperature		ºC	-10 ~45	-10 ~45	-10 ~45
Noise		dB(A)	75	75	75
Hot air circulating fan motors		Power input/qty	250W/unit	250W/unit	250W/unit
		Wind volume	2500m3/H/unit	2500m3/H/unit	2500m3/H/unit
		fan moter quantity	6 units	8 units	8 units
Dimension(L*W*H)		mm	1650*960*1280	1730*1220*1280	2100*1460*1590
Weight	Net weight	Kg	210	385	480
	Gross weight		240	420	540

Recommend Dryer+Drying Chamber Sizes

Item	Description	Product Capacity	Drying Chamber size
1	One unit JK03RD dryer + drying chamber	300Kg / batch	3300*1900*2200mm
2	One unit JK06RD dryer + drying chamber	600Kg / batch	6000*2800*2200mm
3	One unit JK10RD dryer + drying chamber	1000Kg / batch	6000*3000*2200mm
4	Two units JK03RD dryers + drying chamber	1200Kg / batch	7000*2200*2200mm
5	Two units JK06RD dryers + drying chamber	1500Kg / batch	10000*2800*2200mm
6	Two units JK10RD dryers + drying chamber	2500Kg / batch	10000*3000*2200mm

Warm prompt: We can make any drying chamber sizes as your required



If you are interested in our heat pump dryer, please feel free to contact us for more information, such as catalogue, video, etc.
