Product Specifications
Prod Model: |
QC11y -8*2500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
QC12/11y |
Automation: |
Automatic |
Color: |
Red and Yellow or as Your Require |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Movement Method: |
Contour Control |
Control Method: |
Closed-Loop Control |
Numerical Control: |
CNC/MNC |
Performance Classification: |
High-End CNC Machine Tools |
Product Description

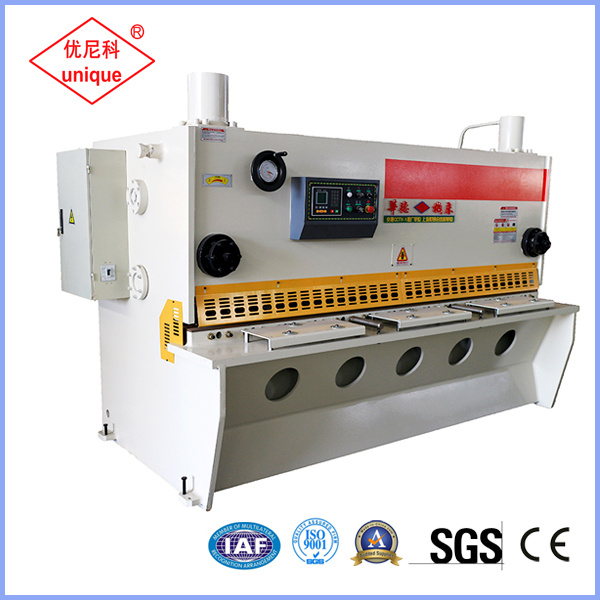

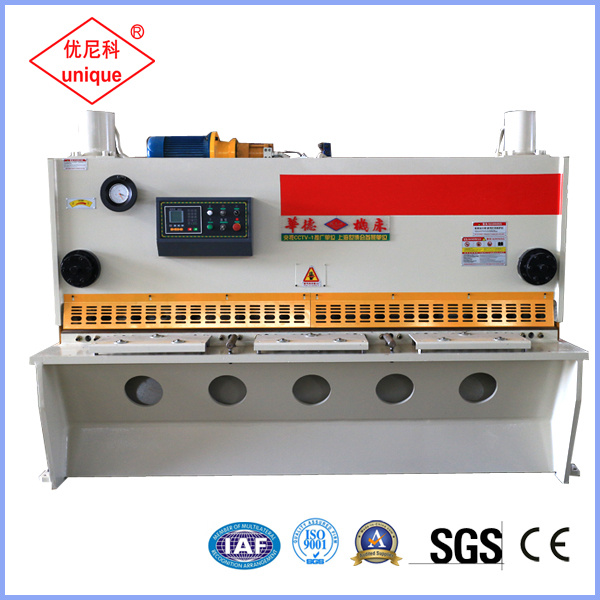

High Quantity Guillotine Shears with CE:
1. The use of computer-aided design. Important component rack, sliders, etc. using ANSYS finite element analysis software, to ensure the reliability of the machine.
2. rack, slide using welded structure, using German technology to eliminate the stress treatment, maintain good accuracy.
3. The use of shot blasting methods, and spray anti-rust paint.
4. The machine column, table, binder beams, boring and milling on the turret using disposable forming process, to ensure that the squareness and parallelism of the mounting surface.
5. Using the three-point support rolling guide, to maintain good accuracy, improved cut quality.
6. blade gap adjustment convenient, improved cut quality. Blade gap value with digital display.
7. shear angle adjustable, reducing deformation of the sheet.
8. Pour the turret structure adopted within easy blanking, to improve the accuracy of parts.
9. rectangular blades with four cutting edges, long life, easy grinding.
10. Activities blade holder, easy to adjust blade gap uniformity, improve cut quality, and extend blade life.
11. The use of advanced integrated hydraulic control system reliability.
12. Using a tandem cylinder synchronization systems, machine even by force.
13. The hydraulic system uses Bladder accumulators as auxiliary energy, while absorbing pressure shocks, the machine runs smoothly, low noise.
14. Hydraulic pressure feeder shearing more reliable.
15. The binder force with shear force changes.
16. The spherical balls care feeding station, user-friendly cut feed.
17. The vertical block feeder positioning operation before the user to adapt to the requirements under the front foot with the blade.
18. Cut with piecewise functions.
19. E20 shears can ESTUN company dedicated control system, variable frequency motor control inverter + backgauge for automatic positioning. Programming convenience, control precision is high.
20. After CNC backgauge gear ball screw, high precision.

Name/Model | 62/6 | 62/8 | 80/10 | 40/13 | 62/13 | 80/13 | 25/16 | 31/16 | 40/16 | 50/16 | 62/16 |
Max. Cutting thickness |
|
|
|
|
|
|
|
|
|
|
|
Mild steel mm | 6 | 8 | 10 | 13 | 13 | 13 | 16 | 16 | 16 | 16 | 16 |
Stainless steel mm | 3 | 4 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 |
Cutting length mm | 6200 | 6200 | 8000 | 4000 | 6200 | 8000 | 2500 | 3100 | 4000 | 5000 | 6200 |
Cutting force kN | 132 | 220 | 430 | 730 | 620 | 620 | 730 | 850 | 850 | 850 | 850 |
Back gauge distance mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Rake angle adjustment ° | 0.5-2.5 | 0.5-2.5 | 0.5-2 | 0.5-2 | 0.5-2.5 | 0.5-2.5 | 0.5-3 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
Stroke Per minute | 7-45 | 8-35 | 7-30 | 10-30 | 10-30 | 7-45 | 7-30 | 12-33 | 8-30 | 6-20 | 7-20 |
Throat depth mm | 100 | 100 | 100 | 200 | 60 | 400 | 300 | 300 | 200 | 100 | 100 |
numbers of hold downs | 32 | 32 | 42 | 20 | 32 | 42 | 13 | 16 | 20 | 22 | 32 |
oil tank volume L | 686 | 686 | 845 | 561 | 686 | 1600 | 499 | 591 | 561 | 662 | 686 |
motor power kW | 15 | 22 | 37 | 30 | 30 | 60 | 22 | 22 | 30 | 37 | 37 |
weight kg | 20000 | 24000 | 45000 | 14000 | 28000 | 55000 | 10000 | 12000 | 18000 | 28000 | 36000 |
dimension length mm | 7065 | 7095 | 9016 | 4885 | 7100 | 9090 | 3265 | 3865 | 5020 | 5935 | 7135 |
width mm | 2650 | 2540 | 2615 | 2190 | 2515 | 3525 | 2140 | 2140 | 2290 | 2550 | 2550 |
height mm | 2650 | 2815 | 3000 | 2488 | 2830 | 3360 | 2350 | 2350 | 2575 | 2870 | 2870 |
