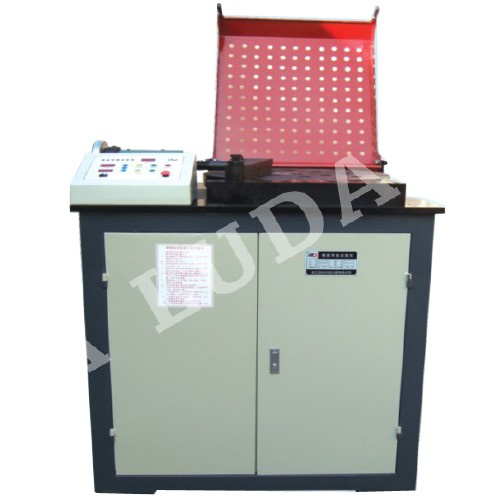

Gw-40c Rebar Bending Machine (GW-40C)
Product Specifications
| Prod Model: |
GW-40C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:Zhejiang, China: |
Brand Name:Luda |
Product Description
This product is suitable for industries such as steel mills, construction units, industrial and mining enterprises, and transportation inspection organizations, which is used for bending and reverse bending of rebar within a plane surface, the product meets the requirements of YB/T5126, GB 14992 and GB/T 232 standards. The machine has compact structure, strong rigidity, and the bending test is easy to operate; The machine uses high-power reduction unit for loading, which is quick and efficient; Control display is accurate and reliable, bending angles can be arbitrarily set, the machine is also provided with bending angle dual display device.
|
Model specification |
GW-40C |
|
Rebar bending diameter(mm) |
6~40 |
|
Rebar bending angle |
Forward direction |
arbitrarily settable between 0~180° |
|
Reverse direction |
|
Working disc |
Rotational speed(r/min) |
3.7 |
|
Diameter(mm) |
580 |
|
Roll center distance(mm) |
165 |
|
Supply power |
1.5 kW |
|
AC380V±10% 50Hz |
|
Overall dimensions(mm) |
1050×740×1170 |
|
Weight(kg) |
750 |
Zhejiang Luda Mechanical Equipment Co., Ltd. is a subsidiary fully invested by the industry's leading manufacturer Shanghai Luda Experimental Apparatus Co., Ltd. In Zhejiang, which specializes in the production and sales of various universal testing machines, compression-testing machines, cement, concrete and asphalt test apparatuses, steel strand relaxation testing machines, static load anchorage testing machines and other specialized testing equipment. Our company has participated in the drafting of several standards of construction industry of the People's Republic of China such as "Apparatus for Freeze-Thaw Resistance Test of Concrete" and "Concrete Carbonation Test Chamber", and now is a member company of China Special Committee for Building Materials Testing Techniques, in 2008, our company was awarded the AAA grade enterprise by the China Bureau of Quality and Technical Supervision.
At present, our company has obtained the "Measuring Instruments Manufacturing License" for 11 products, and has repeatedly won the titles of "Qualified Enterprise of Quality Management", "Reliable AAA Grade Enterprise", etc., we have passed the ISO 9001: 2000 international quality management system certification, and have become a technology-based, innovative modern company integrating production, supply and sales into a whole, we are also a key high-tech enterprise supported by the state government. Our products have been widely applied in national key projects such as Hangzhou Bay Cross-sea Bridge, Shanghai-Nanjing, Shanghai-Ningbo, Harbin-Dalian and Wuhan-Guangzhou engineering, and been well received in general.
Currently, our company has established offices, agencies and distributors in large and medium-sized cities all across China, and formed a complete sales and after-sales service system. Our products are found in various universities and colleges, highways, railways, bridges, laboratories as well as respective testing organizations. Our company has the import and export autonomy, our products are exported far to the Europe, America, Southeast Asia and Africa, and are enjoying a good reputation both at home and abroad.
Luda has been specializing in instrument industry for more than twenty years! Our entire staff sincerely welcomes friends from all walks of life to visit our company for cooperation, and looks forward to progress and develop with new and old customers to together create a better future!
