Product Specifications
| Prod Model: |
30141-271 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| H.264 Encodec: |
Full-D1 |
| Lanc: |
Onboard Lanc Inetrface |
| 2.4' TFT Screen: |
Recording Video Preview |
| Gui: |
Setting Menu on Local DVR |
| OSD: |
Date/Time Stamp & OSD Logo |
| Lap Timer: |
Lap Timer OSD, Recording |
| Type: |
Standalone |
| Feature: |
Mini Size |
| Operating System: |
Linux |
| Style: |
Mini Camera |
| Horizontal Resolution: |
650tvl |
| Technology: |
Full-D1 H.264, Lap Timer |
| Sensor: |
Support External Camera/Video Input |
Product Description

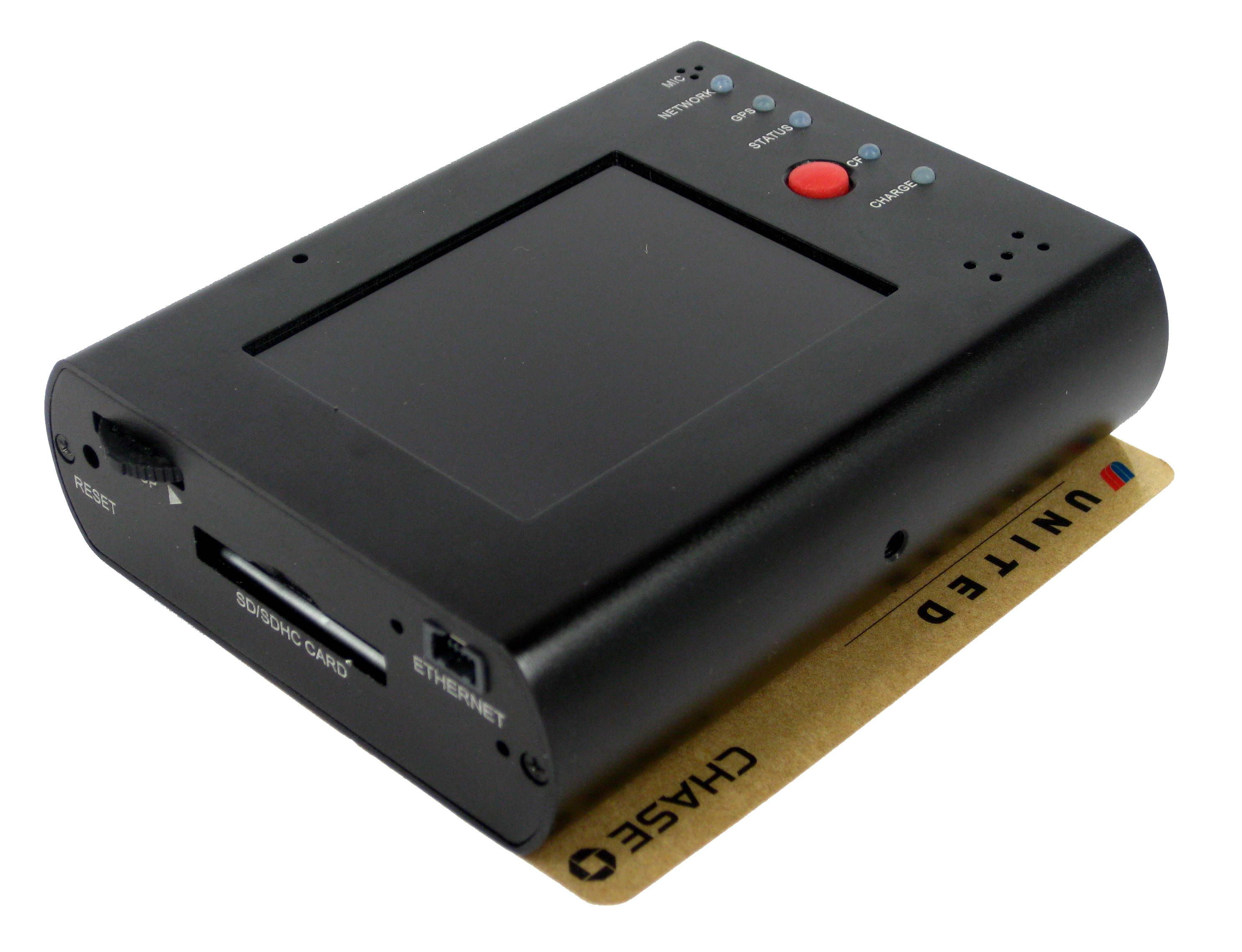

H264 Micro Pocket DVR, a solid state DVR with advanced H264 codec, is one dedicated battery powered DVR designed for portable, mobile DVR applications. It is a go-anywhere mini-standalone Micro DVR with high resolution, DVD quality video and external CCD/CMOS camera support. H264 Micro DVR provides scalable video and audio compression to record up to 32 hours in Full D1 quality on solid state drives. The record time could be much longer if motion detection is active or lower frame rate is used in surveillance. Generally, there are three level record modes, EP/LP/SP for record options. Interface to integrate with other system, customized bit rate, motion detection, time stamp, video Lap Timer, LANC available. Furthermore, it provide AV output of replayed video.
H264 MICRO DVR is small enough to fit in your hand and offer broadcast quality video. It uses solid state drive, removable SD (Secure Digital) or SDHC Card. There are various SD cards for option now in market. FAT32 standard file system is used in video storage, therefore the video files can be synchronized to any PC via card reader or Ethernet.
The Micro DVR comes with Industrial Lion polymer battery for standalone power and replaceable. It will be charged automatically by on board charger while AC power is used. Besides of battery, AC power is also available and can be swapped with battery any time without the interruption of operation of Micro DVR. Meanwhile, Micro DVR also supply power to any external camera with adjustable output voltage. Car cigarette power adapter can also be used to power Micro DVR or charge battery.
H264 Micro DVR digitizes analog video into crisp Full D1 video stream at a full frame rate up to 3Mbits/s. The compressed video and audio are transferred to SD/SDHC card synchronously. As the H264 file is fully H264 compliant, it can be used for direct view and video editing. Micro DVR also offers advanced event handling with video motion detection, alarm notification, Lap Timer and professional LANC remote interface. Micro DVR also features LED, or Buzz for status indication.
H264 Micro DVR can be used in almost unlimited number of situations, like digital security surveillance, remote monitoring, car racing, helicopter, buses, wildlife filming and extreme sports etc.
|
Power |
AC Adapter |
12VDC1A, 110-240VAC Adapter, UL/CSA/BS/VDE/SAA optional |
|
Battery |
1x3.7V Li-polymer rechargeable battery, 3500mAH |
|
Camera |
12V 250mA output, 5-12V adjustable |
|
DVR |
12V 140mA |
|
Video |
Video Stream |
H264/AVC Main Profile Level 3 |
|
Resolution |
PAL: 720x576-D1 , NTSC: 720x480-D1 |
|
Bit Rate |
600K-3Mbits/s, Three level adjustable |
|
Frame Rate |
PAL: 25fps, NTSC:30fps |
|
Record Quality |
EP/LP/SP |
|
Record Trigger |
Button/LANC/LAN/Motion |
|
Standard |
PAL/NTSC/SECAM |
|
Picture |
Brightness, Contrast, Saturation adjustable |
|
Audio |
Sampling |
48KHz |
|
Format |
AAC |
|
Interface |
Remote Control |
IR, LANC, LAN |
|
Button |
Record, Stop and directional push buttons |
|
Video In |
Lock connector. RCA, 1Vpp, 75ohm |
|
Video Out |
RCA, 1Vpp, 75ohm |
|
Audio/MIC In |
3.5mm Jack, 2 Channel, Mono or Stereo |
|
Audio Out |
3.5mm Jack, 2 Channel, Stereo |
|
Camera Power |
5.5mm power jack |
|
DC Power |
4.2mm O.D. x 1.3mm I.D., DC Power Jack |
|
Battery |
2MM Header |
|
Visible |
Multi-color LED |
|
LANC |
2.5mm LANC Jack |
|
Alert* |
Buzz, Motor Vibration optional |
|
LCD |
2.4" TFT |
|
Ethernet |
10/100 Base-T |
|
Record Trigger |
IR, LANC, button and LAN/Internet |
|
Storage |
SD Card |
512MB-32GB |
|
Format |
FAT32 |
|
Physical |
Dimension |
87x70x23.5mm |
|
Weight |
200g (with battery and SD) |
System
(Playback) |
PC |
Pentium III 800M/128M or higher with SD or card reader |
|
Windows 2K/XP/Vista/7 |
