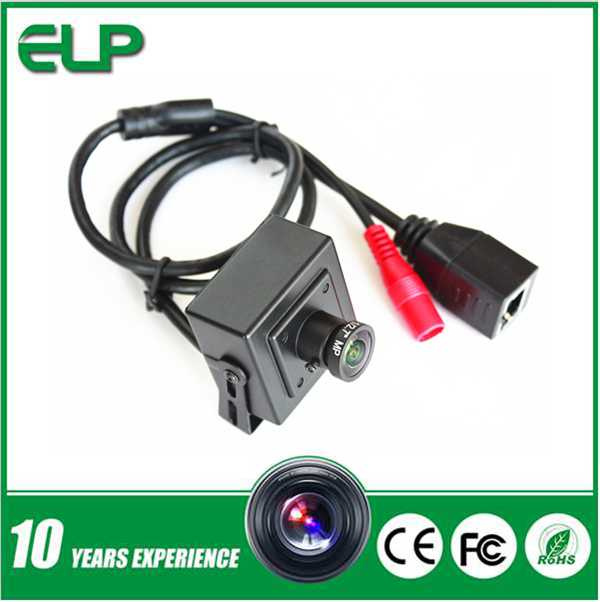

H. 264 onvif P2P CMS software Free Android iPhone APP micro digital webcam mini wide angle 180 degree camera
Key Features:
*1.0 Megapixel mini size IP camera
*Main stream always, resolution: 1280X720
*P2P remote surveillance
*electronical zoom funcion
*Support ONVIF
* wide view angle fisheye lens, 150 160 170 180 degree
*poe optional
*audio optional
|
arameters |
1.0megapixel mini size IP camara |
|
Camera |
|
Sensor |
1.0Megapixel professional-type illumination CMOS sensor HI3518C+OV9712 |
|
Min illumination |
Color:0.6Lux (F1.2, AGC ON) |
|
Black/white: 0.08Lux (F1.2, AGC ON) |
|
shutter |
1/50(1/60)s to 1/100, 000s |
|
lens |
HD professional wide view angle fisheye lens |
|
Compression |
|
Video compression |
H. 264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable. |
|
Video bit rate |
100Kbps~6Mbps |
|
Image |
|
Resolution |
Main stream: 1280X720 |
|
Image setting |
Saturation, brightness, contrast can be adjusted via client side or IE browser |
|
Network |
|
Storage |
Network |
|
Protocol |
1 * RJ45, 10/100M; Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP |
|
Basic |
Support WEB remote configuration, OSD, alarm input active to record, snapshot |
|
CMS, mobile(iPhone/Blackberry/Android/Symbian/windows), MYEYE(multiple devices management system), SDK |
ONVIF Support |
|
Interface |
|
Communicating |
1pcs RJ45 10M/100M self adaptive Ethernet interface |
|
Video output |
Support CVBS video output and overlying DDNS, user name, password and other info. |
|
General |
|
Working condition |
-50~60 degree. humidity less than 90%(non-condensing) |
|
Power supply |
DC 12V 2A |
