Development Vacuum Equipment (Sanmen) Co., Ltd. >> H-8A Single Stage Slide Valve Mechanical Pump for Vacuum Impregnation

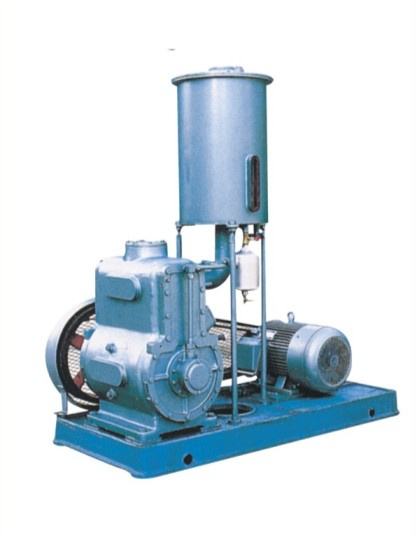

H-8A Single Stage Slide Valve Mechanical Pump for Vacuum Impregnation

Name: H-8A Single Stage Slide Valve Mechanical Pump for Vacuum Impregnation
Brand: china-manufacturer-directory.com
SKU: 734270625
Availability: InStock
Rating: 4.7 (77 reviews)

Supplier:	Development Vacuum Equipment (Sanmen) Co., Ltd.
Price:	US $ 5528/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	H-8A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Displacement:	150L/S 320cfm
Ultimate Partial Pressure:	1PA
Ultimate Total Pressure:	6PA
Motor Power:	18.5kw
Suction:	150mm
Discharge:	80mm
Cooling Water:	15 Degree 700kg/H
Exhauster Method:	Positive Displacement Pump

Product Description

DESCRIPTION:
Rotary Piston Vacuum Pump can be operated independently, also can be a backing pump when combined with Roots Vacuum Pump, Oil Boater Pump, Oil Diffusion Pump, the pump must be fitted with appropriate accessories if the exhausted gas is corrosive to ferrous metal, reactive with vacuum pump oil, or rich in vapor and dust.

ADVANTAGES:
1. Sino-US technical cooperation
2. The highly complete varieties of Rotary Piston Vacuum Pumps
3. Seriated design, specialized manufacture, high cost performance
4. Advanced structure, excellent performance, easy to use, high reliability and durability
5. Best-selling for domestic and overseas: United States, Germany, Korea, Canada, Finland, lran, Austria, Russia and Taiwan etc.

APPLICATIONS:
Widely used in production and development of new materials, new technologies and new process for vacuum crystal pulling, vacuum coating, vacuum metallurgy, vacuum heat treatment, vacuum impregnation, vacuum drying, vacuum disillation, vacuum kneading, aerospace simulation experiments.

Model	Displacement	Ultimate Partial Pressure	Ultimate Total Pressure	Motor Power	Suction	Discharge	Cooling Water
2H-15DV	15L/S 32CFM	0.05Pa	1Pa	2.2, 1.5kW	50mm	40mm	100(15ºC kg/h)
2H-15DVA	15L/S 32CFM	0.05Pa	1Pa	2.2, 1.5kW	50mm	40mm	Air Cooled
2H-30DV	30L/S 65CFM	0.05Pa	1Pa	4/3kW	63mm	50mm	200(15ºC kg/h)
2H-45DVA	45L/S 95CFM	0.05Pa	1Pa	4kW	63mm	50mm	Air Cooled
2H-50DV	50L/S 105CFM	0.05Pa	1Pa	5.5kW	80mm	63mm	300(15ºC kg/h)
2H-70DV	70L/S 150CFM	0.05Pa	1Pa	7.5kW	80mm	63mm	400(15ºC kg/h)
2H-80DV	85L/S 180CFM	0.05Pa	1Pa	7.5kW	80mm	63mm	500(15ºC kg/h)
2H-100DV	100L/S 210CFM	0.05Pa	1Pa	11kW	100mm	80mm	600(15ºC kg/h)
2H-120DV	120L/S 255CFM	0.05Pa	1Pa	11kW	100mm	80mm	600(15ºC kg/h)
2H-150DV	150L/S 320CFM	0.05Pa	1Pa	15kW	125mm	100mm	800(15ºC kg/h)
2H-160DV	160L/S 340CFM	0.05Pa	1Pa	15kW	125mm	100mm	800(15ºC kg/h)
2H-220DV	225L/S 480CFM	0.05Pa	1Pa	22kW	150mm	100mm	1200(15ºC kg/h)
2H-450DV	450L/S 950CFM	0.05Pa	1Pa	45kW	200mm	150mm	2400(15ºC kg/h)
H-25DV	25L/S 52CFM	0.5Pa	3Pa	2.2, 1.5kW	50mm	40mm	100(15ºC kg/h)
H-25DVA	25L/S 52CFM	0.5Pa	3Pa	2.2, 1.5kW	50mm	40mm	Air Cooled
H-50DV	50L/S 105CFM	0.5Pa	3Pa	4/3kW	63mm	50mm	200(15ºC kg/h)
H-60DVA	60L/S 130CFM	0.5Pa	3Pa	4kW	63mm	50mm	Air Cooled
H-70DV	70L/S 150CFM	0.5Pa	3Pa	5.5kW	80mm	63mm	300(15ºC kg/h)
H-100DV	105L/S 223CFM	0.5Pa	3Pa	7.5kW	80mm	63mm	400(15ºC kg/h)
H-120DV	120L/S 255CFM	0.5Pa	3Pa	7.5kW	80mm	63mm	500(15ºC kg/h)
H-150DV	150L/S 320CFM	0.5Pa	3Pa	11kW	100mm	80mm	600(15ºC kg/h)
H-160DV	160L/S 340CFM	0.5Pa	3Pa	11kW	100mm	80mm	600(15ºC kg/h)
H-220DV	225L/S 480CFM	0.5Pa	3Pa	15kW	125mm	100mm	800(15ºC kg/h)
H-300DV	300L/S 635CFM	0.5Pa	3Pa	22kW	150mm	100mm	1200(15ºC kg/h)
H-600DV	600L/S 1280CFM	0.5Pa	3Pa	45kW	200mm	150mm	2400(15ºC kg/h)
H-150D	150L/S 320CFM	0.5Pa	3Pa	15kW	100mm	80mm	700(15ºC kg/h)
H-150	150L/S 320CFM	1Pa	6Pa	15kW	150mm	80mm	700(15ºC kg/h)
H-8A	150,180L/S 320, 380CFM	1Pa	6Pa	18.5kW	150mm	80mm	700(15ºC kg/h)

DVE pumps are widely used in electronics, electrical, metallurgy, coating, ceramics, pharmaceuticals, chemical, papermaking industry, vacuum heat treatment, vacuum drying and impregnation for transformer, freeze-drying, energy industry, aerospace, or other fields.

As a plant, we specialized in design and manufacture vacuum pumps, vacuum systems for more than 20 years, with professional R&D team, Sino-US technical cooperation, we obtain CE certificate and manage our production strictly under ISO9001: 2008 Quality Management system. Lots of customers cooperated with us for more than 10 years, for example:

ALD Industries and Montagepark

Staaken GmbH

Starren Strasse 53-63

13581 Berlin, Germany

Dekker Vacuum Technologies, Inc

935 S. Woodland Ave. Michigan City, IN 46360,

United States

Sea Port: Ningbo/Shanghai, China

Standard: CE Mark, Spare Parts Of High Level

Delivery: Normally according to our factory production schedule, but we can follow your first order time

Warranty: If pump appear quality problems, free replacements of spare parts will be offered within one year

WE CAN PROVIDE YOU

1. On-time Delivery, with More Choice

2. Perfect Technical Support

3. Customized Vacuum Solutions and Service

4. Samples Available

5. Long Quality Guarantee

6. Fast Response to Customers' Feedback in 12 hours

DVE - Where high quality is standard, responsibility lies.
