Product Specifications
Product Description

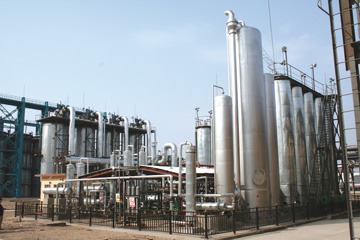

Prior to removing coal tar, denaphthalene and desulfurization, the crude coal gas becomes refined coal gas, which is further compressed, pretreated, purified through PSA, deoxidated and dried successively and then the high purified H2 can be obtained.
Technical features
The process flow is short and it is easy to operate.
A large amount of gas can be disposed with thorough depuration.
The purity of product H2 is high.
The technology is advanced, which is in the leading position.
|
Main performance index |
|
Amount of coal gas to be disposed |
1000~100000Nm3/h |
Purity of H2 as product |
98%~99.999% (v/v) |
|
Naphthalene content in the refined coal gas |
≤ 20mg/Nm3 |
Pressure of H2 as product |
0.5~3.0MPa-g |
|
Coal tar content in the refined coal gas |
≤ 8mg/Nm3 |
Temperature of H2 as product |
Ambient |
|
Sulfur content in the refined coal gas |
≤ 10mg/Nm3 |
Scale of H2 generation plant |
500~20000Nm3/h |
BRIEF INTRODUCTION OF ALLY HI-TECH Co., Ltd.
Founded in 1996, Ally Hi-Tech Co., Ltd. The former Sichhuan Ally Chemistry Institute, is a high-tech enterprise which integrates product R&D, manufacture and engineering with technical service and is well evaluated for its advanced technology and quality service.
Ally Hi-Tech has three branches which are Ally Hi-Tech Co., Ltd. (Sichuan), Ally Chemical Material Co., Ltd. (Shanghai) and Ally Hi-Tech Machinery Co., Ltd. (Chengdu) as well as its workshop. Besides its laboratory, Ally has also established cooperating laboratories with Chengdu Branch, Chinese Academy of Science, Tongji University and South China University of Technology; And has been cooperated with Tsinghua University for the National 863 Project (National High-tech Project) and 2008 Beijing Olympic Game as well as 2010 Shanghai World Expo.
In 2000, Ally was restructured into a limited limited company.
In Octorber 2008, Ally was transformed into an incorporated corporation.
MAIN BUSINESS
Ally Hi-Tech is a professional gas engineering enterprise which is engaged in the technology development, engineering and construction as well as technical service for generation, separation and purification of industrial gases while also runs in the fields of production of industrial catalysts, valves and sewage treatment as its non-core business.
Ally's products are widely used in terms of pertroleum, refinery, cjemistry, fine chemical industry, fuel ethanol, ammonia, merallurgy, electronics, glass and pharmaceuticals etc.
Ally contracted over30 projects each year; The contracting form includes engineering (besic design & detail design), engineering management, procurement management, partial contract and EPC.
