H72/8072-3inch Professional Audio Hf Compression Driver Speaker
Product Specifications
| Prod Model: |
H72/8072 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<102dB |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Metal |
| THD: |
<0.005% |
| Speaker System: |
Passive |
| Application: |
Stage |
| Certification: |
ISO |
| Monitor: |
None |
Product Description

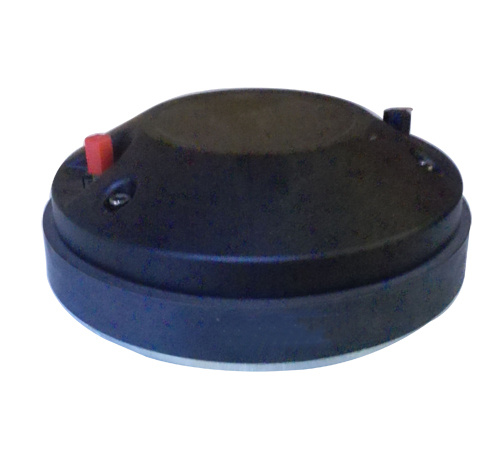

H72/8072-3Inch Professional Audio HF Compression Driver Speaker
5.Professional Loud Speaker Compression Driver designed for HF application6.Hipower Audio is a Professinal Speaker factory with experience in the Speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.
7. dj equipment material
8.Details:
| General Specifications |
| Nominal Diameter | 38/1.5 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling | 80 | Watts |
| Program Power | 160 | Watts |
| Sensitivity(lw/lm) | 112 | dB |
| Frequency Range | 800-17k | Hz |
| Minimum Impedance(Zmin) | 6.8 | ohm |
| Voice Coil Diameter | 72/2.8 | mm/inch |
| Voice Coil Material | Edgewound Aluminum | |
| Voice Coil Winding Former | Kapton | |
| Phase Plug Material | Aluminum | |
| Flux Density | 1.55 | T |
| Magnet Material/Mass | Ceramic/1.63 | kg |
| Thiele-Small parameters |
| Resonance frequency | Fs | | Hz |
| DC resistance | Re | | ohm |
| Mechanical factor | Qms | | |
| Electrical factor | Qes | | |
| Total factor | Qts | | |
| Mechanical compliance | Cms | | mm/N |
Mechanical resistance
of suspension losses | Rms | | mech-ohm |
| Effective Moving Mass | Mms | | gr |
| Half-space efficiency | Eff | | % |
| BL Factor | BL | | T.m |
| Equivalent Cas air load | Vas | | liters |
| Effective piston area | Sd | | m2 |
| Max.linear excursion | Xmax | | mm |
| Voice-coil inductance | LelK | | mH |
| Mounting Information |
| Overall Diameter | 169 | mm |
| Overall Depth | 63.5 | mm |
| Net Weight | 5.3 | kg |
| 4xM6 holes,90°on 101.6mm diameter |
