Product Specifications
| Prod Model: |
BJHCS-LSP3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Hall Sensor |
| Theory: |
Hall Sensor |
| Material: |
Mixture |
Product Description

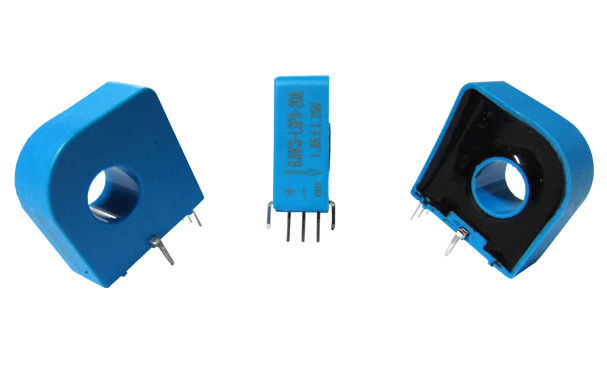

BJHCS-LSP3 series of closed-loop magnetic sensor is based on the principle of a balanced current sensor which can measure DC, AC, pulse, and various irregular current. The output can be a truly reflecting waveform of the sensor.
|
Product Characteristics |
Applications |
|
High accuracy |
Frequency drive control home appliances Solar power management system Inverter Applications UPS uninterruptible power supply Current monitoring |
|
Very good linearity |
|
Small PCB mounting |
|
Low power consumption |
|
Good over-current capability |
ELECTRICAL CHARACTERISTIC
|
BJHCS-LSP3 |
06A |
10A |
15A |
25A |
|
Nominal r. m. s current IPN(A) |
06 |
10 |
15 |
25 |
|
Measuring range IP(A) |
0~± 12A |
0~± 20A |
0~± 30A |
0~± 50A |
|
Sampling resistor |
100 |
62.5 |
42 |
25 |
|
Coil turns |
960 |
1000 |
1000 |
1000 |
|
Rated output |
1.65± (IP/IPN)*1.00 |
|
Supply voltage |
+3.3VDC ± 5% |
|
Isolation voltage |
50Hz, 1min, 3kV |
|
Impulse withstand voltage |
1.2/50µ s, > 8kV |
|
|
< 10nF @Vout~GND |
DYNAMIC CHARACTERISTICS
|
Offset voltage at +25 ° C |
1.65 |
V |
|
Zero offset voltage at +25 ° C |
± 15 |
mV |
|
Offset voltage drift |
≤ ± 0.5 |
mV/° C |
|
Linearity error |
≤ 0.1 |
%FS |
|
Accuracy |
± 0.7 |
% |
|
Accurately followed di/dt |
> 50 |
A/µ s |
|
Response time tr |
< 1 |
µ s |
|
Bandwidth (-1db) |
DC ~ 200 |
kHz |
|
Creepage distance (shell) |
15.4 |
mm |
GENERAL CHARACTERISTIC
|
Operating temperature |
-40 ~ +85 |
° C |
|
Storage temperature |
-40 ~ +125 |
° C |
|
Static power |
10 |
mA |
|
Actual weight |
10 |
g |
OTHERS
|
Certification |
CE |
|
Environmental protection system |
REACH |
|
Quality System |
ISO9000 |
|
ISO14001 |
