Product Specifications
| Prod Model: |
BJHCS-LTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Hall Sensor |
| Theory: |
Hall Sensor |
| Material: |
Mixture |
Product Description

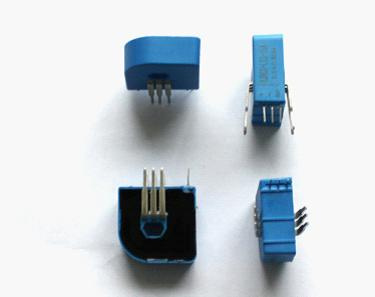

BJHCS-LTS series of closed-loop current sensor is based on the principle of a balanced current sensor, can measure DC, AC, pulse, and various irregular current. Sensor's output can be a truly reflect the waveform of the power conductors.
|
Product Characteristics |
Applications |
|
High accuracy |
Frequency drive control home appliances Solar power management system Inverter Applications UPS uninterruptible power supply Current monitoring |
|
Very good linearity |
|
Small PCB mounting |
|
Low power consumption |
|
Good over-current capability |
|
ELECTRICAL CHARACTERISTIC |
|
Current sensor BJHCS-LTS |
6A |
15A |
25A |
50A |
|
Nominal r. m. s current IPN(mA) |
6 |
15 |
25 |
50 |
|
Measuring range IP(mA) |
19.2A |
48A |
84A |
150A |
|
Sampling resistor |
100Ω |
50Ω |
50Ω |
25Ω |
|
Coil turns |
960± 1 |
1200± 1 |
2000± 2 |
2000± 2 |
|
Rated output |
0.625V± 0.5% |
0.625V± 0.5% % |
0.625V± 0.5% |
0.625V± 0.5 |
|
Supply voltage |
+5VDC ± 5% |
|
Isolation voltage |
50Hz, 1min, 3kV |
|
Impulse withstand voltage |
1.2/50µ s, > 8kV |
|
DYNAMIC CHARACTERISTICS |
|
Offset voltage at +25 ° C |
2.5V |
|
Zero offset voltage at +25 ° C |
20mV |
|
Offset voltage drift |
≤ ± 0.5mV/° C |
|
Linearity error |
≤ 0.1%FS |
|
Accuracy |
± 0.7% |
|
Accurately followed di/dt |
> 50A/µ s |
|
Response time tr |
< 1µ s |
|
Bandwidth (-1db) |
DC ~ 200kHz |
|
Creepage distance (shell) |
15.4mm |
|
GENERAL CHARACTERISTIC |
|
Operating temperature |
-40 ~ +85 |
° C |
|
Storage temperature |
-40 ~ +125 |
° C |
|
Static power |
10 |
mA |
|
Actual weight |
10 |
g |
|
OTHERS |
|
Certification |
CE |
|
Quality System |
ISO9000 |
|
ISO14001 |
Zhejiang Bojie Electron Co., Ltd was established in 1998. We are a private own manufactory of current sensor and hall element. Over 13 years service time, our annual sale has over USD 50 Million, and yearly capacities are more than one million pieces in 6 product lines for now. We always take our customers with stable growth. Welcome contacts us anytime.
Our factory is located in Xiaoshan, Zhejiang PRO, China with over 180 employees. We produce many different types of electronic components, such as current sensor, voltage sensor, hall element. We are also available for OEM/ODM and custom made electronic components.
Our production system is certificated with ISO9001: 2000, SGS, CE and under complete and severe quality management, we assure you stable production procedure and good quality.
